Description
● GYXTW53 Self-Supporting Double Sheath Armored Outdoor Cable:

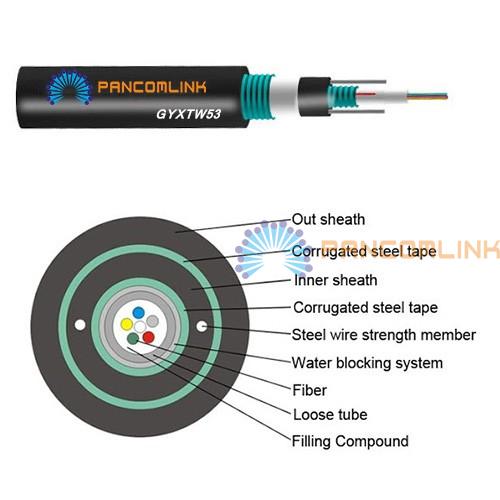

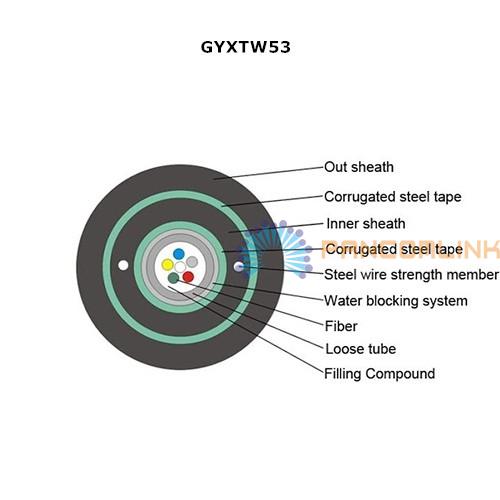

The fibers is in a loose tube with polyethylene laminated sheath longitudinally covered with corrugated steel-tape armored polyethylene outer sheath. The cable combines fiber optic with a diameter of 250μm and fiber count ranging from 2 cores to 24 cores inside a loose tube made of high modulus materials. The loose tube is filled with a waterproof compound, and its exterior is also waterproof treated to prevent water penetration into the fiber optic cable. There is a parallel FRP on each side, which is sheathed with PVC to form up cables. The design of the loose tube is beneficial to the lengthy problems for precise fiber optic control. The attenuation of this fiber optic cable is 1.0dB and the bandwidth of it is 1000MHz.km while it is transmitting at the wavelength of 1300nm.
● Features:
►Good mechanical and temperature performance;
►High strength loose tube that is hydrolysis resistant;
►Special tube filling compound ensure a critical protection of fiber;
►Crush resistance and flexibility;
►Two parallel steel wires ensure tensile strength;
►Small diameter, light weight and friendly installation;
►Long delivery length;
►PSP enhancing moisture-proof;
►Complies with Standard YD/T 901-2009 as well as IEC 60794-1.
● Application:
►Aerial/conduit;
►Connecting communication equipment;
►Indoor shaft, buildings, pipe, buried;
►Suitable for long-distance communication and indoor communication.
● Optical Characteristics:
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300nm |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelengthλcc |
|
≤1260nm |
≤1480nm |
|
|
● Technical Parameters:
|
Cable Type |
Fiber Count |
Cable Diameter |
Cable Weight Kg/km |
Tensile Strength |
Crush Resistance
Long/short term |
Bending Radius
Static/dynamic |
|
GYXTW53～-2 |
2 |
12.0 |
165.0 |
1000/3000 |
500/1500 |
15D/30D |
|
GYXTW53～4 |
4 |
12.0 |
165.0 |
1000/3000 |
500/1500 |
15D/30D |
|
GYXTW53～-6 |
6 |
12.0 |
165.0 |
1000/3000 |
500/1500 |
15D/30D |
|
GYXTW53～8 |
8 |
12.0 |
165.0 |
1000/3000 |
500/1500 |
15D/30D |
|
GYXTW53～10 |
10 |
12.0 |
165.0 |
1000/3000 |
500/1500 |
15D/30D |
|
GYXTW53～12 |
12 |
12.0 |
165.0 |
1000/3000 |
500/1500 |
15D/30D |
|
GYXTW53～24 |
24 |
12.0 |
165.0 |
1000/3000 |
500/1500 |
15D/30D |
|
Storage/Operating Temperature : |
-40℃ to +70℃ |
|||||
