Description
● 10G CWDM SFP+ Optic Transceiver:

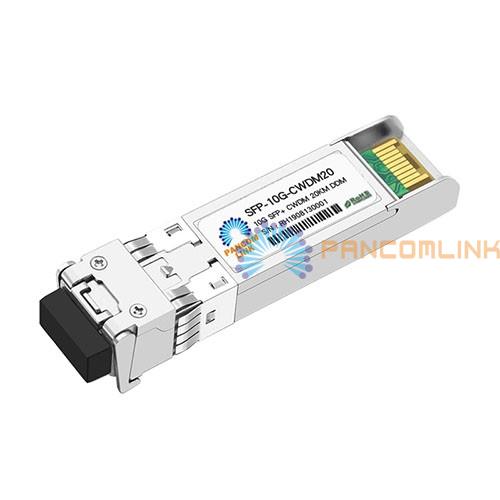

10G CWDM SFP+ transceiver is small form factor pluggable module for bi-directional serial optical data communications such as IEEE 802.3ae 10GBASE-LR/LW/ER/ZR. It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are 18 center wavelengths available from 1270nm to 1610nm, with each step 20nm. A guaranteed minimum optical link budget of 14dB is offered. The transmitter section uses a CWDM multiple quantum well DFB/EML laser and is a class 1 laser compliant according to International Safety Standard IEC-60825.
● Features:
• 10G Ethernet
• Single +3.3 V Power Supply
• SFF-8472 Digital Diagnostic Function
• AC/AC Coupling according to MSA
• 2G/4G/8G/10G Fibre Channel compliance
• Maximum Link Length of 80km at 10.3125Gb/s
• Power Budget up to 10dB, 14dB, 16dB, 23dB
• Complaint to SFP+ MSA, IEEE 802.3ae 10GBASE, RoHS 6
• Class 1 Laser International Safety Standard IEC-60825 Compliant
• Uncooled 18-λ CWDM DFB/cooled EML LD: from 1270nm to 1610nm

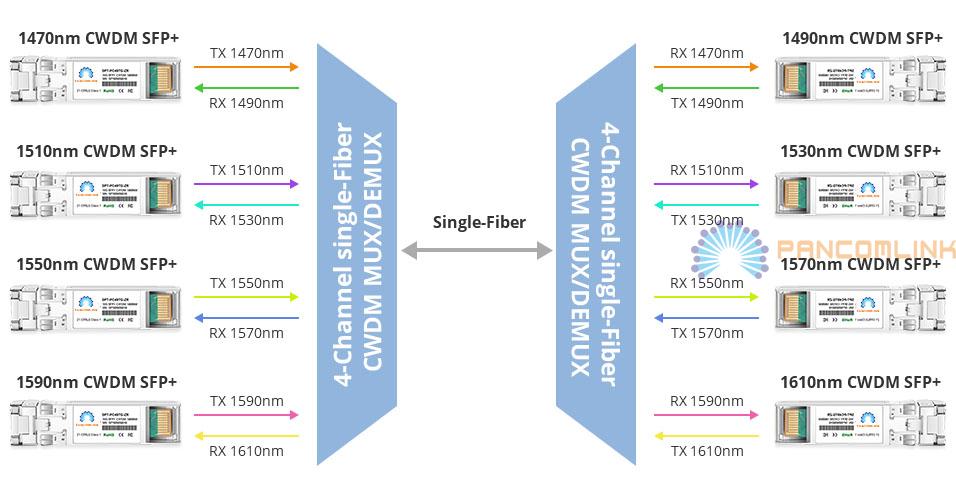

• Can be used with single fiber CWDM system or dual fiber CWDM system
• Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
● Application:
• SONET OC-192/SDH STM-64
• OTN ITU-T G.709
• 10GBASE-SR/LR/ER/ZR Ethernet
• 10X/8X/4X/2X/1X Fibre Channel
• CWDM Networks
● Order Information:
|
10Gbps CWDM SFP+ Transceiver |
||||||||
|
Description |
Data Rate |
Wavelength (nm) |
Distance |
Fiber |
Tx Power (dBm) |
Rx Sens (dBm) |
Interface |
DDM |
|
10G-CWDM-SFP+-XXnm-10KM |
10G |
1270~1330 |
10km |
SMF |
-4~2 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-SFP+-XXnm-10KM |
10G |
1350~1450 |
10km |
SMF |
-4~2 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-SFP+-XXnm-10KM |
10G |
1470~1550 |
10km |
SMF |
-4~2 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-SFP+-XXnm-10KM |
10G |
1570~1610 |
10km |
SMF |
-4~2 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-SFP+-XXnm-20KM |
10G |
1270~1330 |
20km |
SMF |
-4~2 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-SFP+-XXnm-20KM |
10G |
1350~1450 |
20km |
SMF |
-4~2 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-SFP+-XXnm-40KM |
10G |
1270~1330 |
40km |
SMF |
-4~2 |
-20 |
Duplex LC |
Yes |
|
10G-CWDM-SFP+-XXnm-40KM |
10G |
1350~1450 |
40km |
SMF |
-4~2 |
-20 |
Duplex LC |
Yes |
|
10G-CWDM-SFP+-XXnm-40KM |
10G |
1470~1610 |
40km |
SMF |
-2~3 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-SFP+-XXnm-80KM |
10G |
1470~1610 |
80km |
SMF |
0~4 |
-24 |
Duplex LC |
Yes |
|
Operating Temperature |
0 to 70℃ |
|||||||
