Description
● GJFV Indoor Multi-Cores Mini Round Cable:

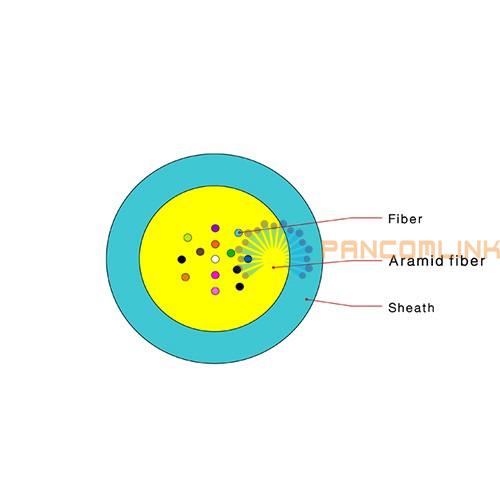

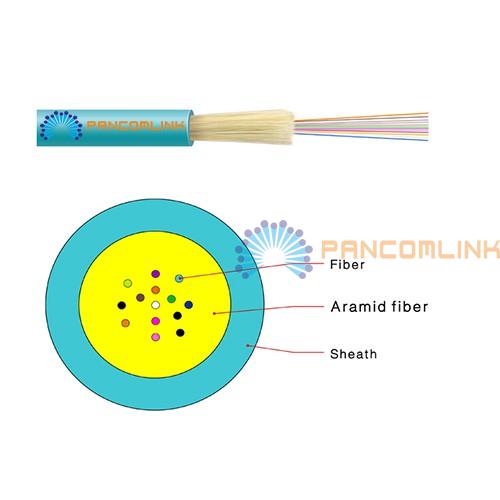

GJFV Indoor Multi-Cores Mini Round Cable is made by evenly applying strands of aramid yarns as the strength member over ф250μm fibers, twisting fibers with aramid yarn, then is completed with PVC, LSZH, OFNR and OFNP jacket, and other materials are available as requirements.
● Features:
►1-288 cores;
►Round structure, easy to strip and splice;
►Mini bundle cable, high strength aramid yarn;
►Suitable for indoor application and communication equipment.
● Application:
►Indoor cabling and distribution;
►Building cabling, LAN etc;
►Connection for indoor equipment.
● Specification:
|
Cable Type |
OD(mm) |
Nominal Weight (kg/km) |
Tensile Strength (N) |
Bending Radius (mm) |
||
|
Long Term |
Short Term |
Static |
Dynamic |
|||
|
GJFV-4Xn |
3.0±0.2 |
8.0 |
90 |
270 |
10D |
20D |
|
GJFV-6Xn |
3.0±0.2 |
8.0 |
110 |
330 |
10D |
20D |
|
GJFV-8Xn |
3.0±0.2 |
8.0 |
160 |
480 |
10D |
20D |
|
GJFV-12Xn |
3.0±0.2 |
8.0 |
200 |
600 |
10D |
20D |
|
GJFV-16Xn |
3.2±0.2 |
10.0 |
220 |
660 |
10D |
20D |
|
GJFV-24Xn |
3.5±0.2 |
15.0 |
240 |
720 |
10D |
20D |
|
Operating and Storage Temperature |
-40℃～+70℃ |
|||||
|
Packing and Reel Length |
Standard wooden drum with protection. Standard reel length: 2/3 km/reel, other length is also available |
|||||
Note: Xn is fiber optic model and D is the diameter of optical cable
