Description

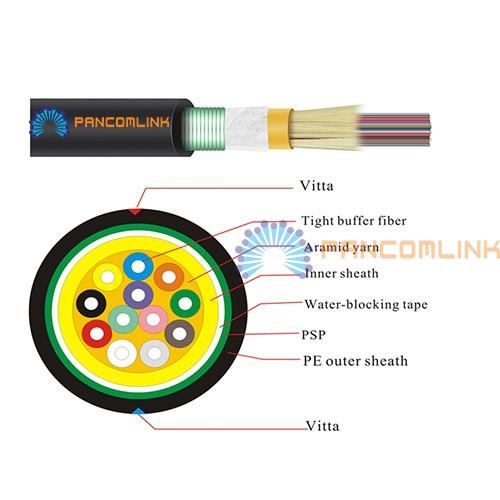

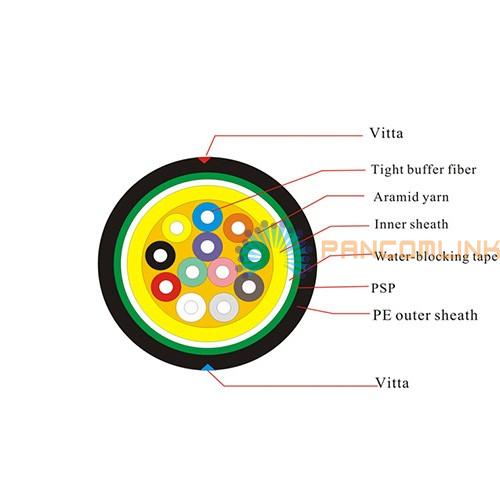

● GJFJH53 Indoor Steel Armored Cable:
The 0.9mm or 0.6mm tight buffer stranded with aramid yarns, sheathed with LSZH as inner jacket, covered with PSP corrugated steel taps beneath the inner and PE outer jacket.
● Features:
►Multicore fibers with armor outer jacket to enhance the attribute of crushing resistance and anti rodent;
►High strength aramid reinforced, high performance jacket material;
►Good mechanical and environment performance;
►Excellent Transverse water-blocking.
● Application:
►FTTH connection;
►Building cabling, LAN etc;
►Outdoor/indoor cabling, trunking hybrid optical connection etc;
►Backbone network to the equipment in the building;
● Specification:
|
Cable Type |
Fiber Count |
OD (mm) |
Tight Buffer Diameter |
Weight (kg/km) |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
Bending Radius (mm) |
|||
|
Long Term |
Short Term |
Long Term |
Short Term |
Static |
Dynamic |
|||||
|
GJFJH53 |
12 |
12.5 |
0.9 |
124 |
400 |
800 |
200 |
1000 |
15D |
30D |
|
GJFJH53 |
24 |
13.5 |
0.9 |
158 |
400 |
800 |
200 |
1000 |
15D |
30D |
|
Operating and Storage Temperature |
-40℃～+70℃ |
|||||||||
