GCYFXTY Micro Duct Air Blowing Cable

Product Item：PCLINK-GCYFXTY-Air-Blowing-Cable

Description

● GCYFXTY Micro Duct Air Blowing Cable:

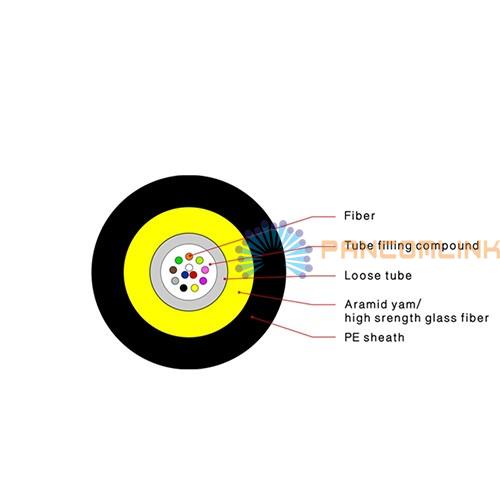

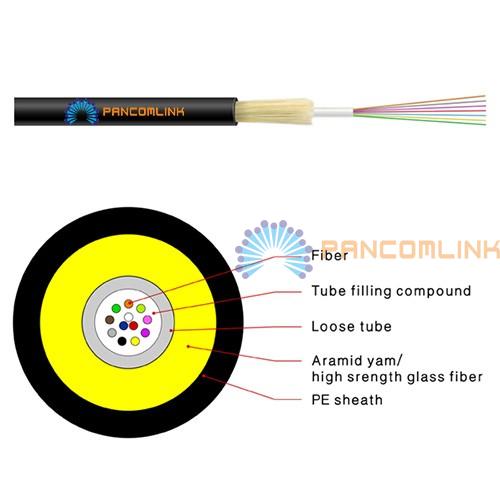

The fibers, 200/250um, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.

● Features:

►Perfect cable structure with high fiber density;
►Accurate fiber length balance to ensure stable performance;
►No gel in cable core for water blocking;
►Sheath structure innovation to enhance blowing performance;
►Greater blowing distance;
►Fiber: G.G652D, G.657A1, G.657A2

● Application:

►Using microtubule resources, especially for the backbone network, access network and fiber to the home;
►Cabling costs are low and suitable for upgrading the old city and building network.

● Technical Parameters:

P/N	Fiber count (F)	Nominal diameter (mm)	Nominal weight (kg/km)	Max tensile strength (N)	Temperature (℃)
MICROC-2G652D-PE	2	4.0±0.1	10	120	-40 to +60
MICROC-4G652D-PE	4	4.0±0.1	10	120
MICROC-6G652D-PE	6	4.0±0.1	10	120
MICROC-8G652D-PE	8	4.0±0.1	10	120
MICROC-12G652D-PE	12	4.0±0.1	10	120
MICROC-24G652D-PE	24	4.5±0.1	14	150

● Blowing Performance:

Fiber count (F)	Blowing machine	Suitable microduct (mm)	Blowing pressure (bar)	Blowing distance in 7/5.5 duct (m)	Blowing distance in 10/8 duct (m)
2 to 12	PLUMETTAZ PR-196 or PR-140	7/5.5 or 10/8	15	1500	2500
14 to 24	PLUMETTAZ PR-196 or PR-140	7/5.5 or 10/8	15	1300	2200
