Description
● Fused Biconic Taper (FBT) Splitter/Coupler:
Fused Biconic Taper (FBT) Splitter, also be called fiber coupler, based on the traditional technology, it is to bundle together two or more optical fibers, and then pull the cone machine melt stretching, and real-time monitoring the change of the ratio, spectral ratio requirements after melt stretching, one side retain a single fiber (the rest of the cut) as input, the other end is a multi-channel output. As one of the key components for GPON FTTX networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor) because the FBT splitters are highly stable for multiport optical signal splitting with low insertion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment.

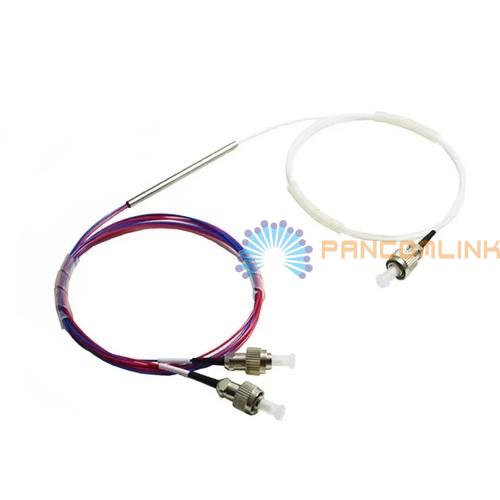

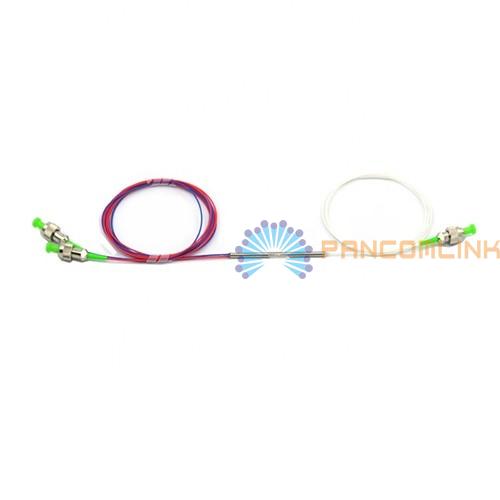

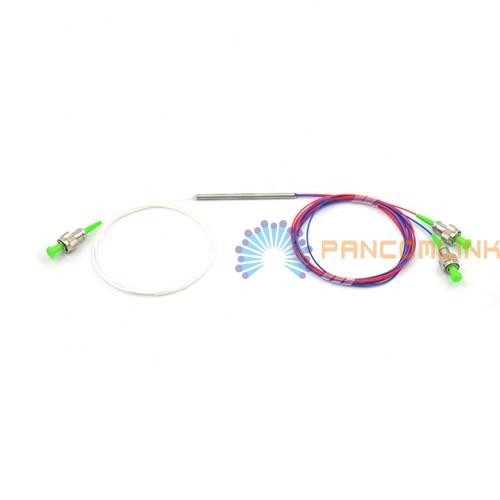

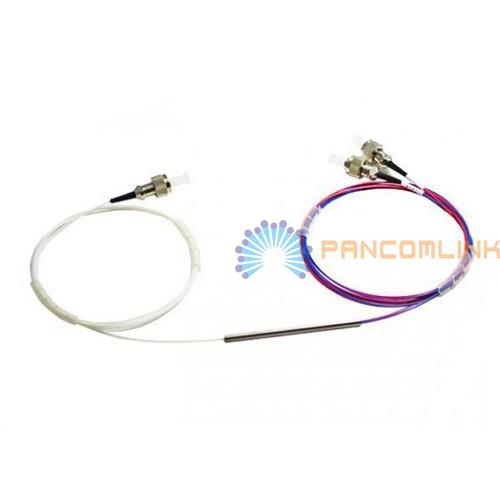

PancomLink's Singlemode 1X2, 2X2 coupler offers very low insertion loss, low polarization dependence and excellent environmental stability. Accurate coupling ratio from 50/50 to 1/99 and fiber type 250um bare fiber, 3mm and 900um loose tube fiber are available with very tight uniformity. Singlemode standard coupler and wideband coupler components find extensive application to perform power splitting and monitoring functions in all kinds of optical communication systems.
● Features:
►Low insertion loss, High return loss optional;
►Low polarization dependent loss;
►Compact for small application areas like in closure or splice trays;
►Excellent environmental & mechanical stability;
►Qualified under Telcordia GR-1221 and GR-1209.
● Application:.
►Long-haul Telecommunications;
►FTTH Network/Deployment;
►CATV Systems & Fiber Optic Sensors;
►Local Area Network (LAN);
►Passive Optical Networks (PON);
►Test equipment.
● Specification:
|
Parameter |
Singlemode Dual Window Wideband Couplers |
|
|
Grade |
Premium |
Grade A |
|
Coupling Ratio (%) |
50/50 |
50/50 |
|
Excess Loss (Typical) (dB) |
0.1 |
0.15 |
|
Maximum lnsertion loss (dB) |
3.6 |
3.8 |
|
Uniformity (Max.) (dB) |
0.7 |
1.0 |
|
Polarization Sensitivity (dB) |
0.15 |
0.2 |
|
Operating Wavelength (nm) |
1310/1550±40 or custom wavelength |
|
|
Operating Temperature (℃) |
-20~+80 |
|
|
Storage Temperature (℃) |
-40~+85 |
|
|
Fiber Type |
Corning singlemode SMF-28 |
|
|
Fiber Pigtail Length (m) |
1 m or custom length |
|
|
Port Configuration |
1×2 or 2×2, or customized |
|
|
Dimensions (mm) |
Package D, E, F, G |
|
● Package Dimensions & Pigtail Style:
|
Package Dimensions: |
|
|
Package D: |
3mm x 45mm stainless steel tube |
|
Package E: |
3mm x 54mm stainless steel tube |
|
Package F: |
3mm x 60mm stainless steel tube |
|
Package G: |
10mm x 20mm x 90mm case |
|
Pigtail Style: |
|
|
Package D, E: |
250um bare fiber |
|
Package F: |
250um bare fiber or 900um loose tube |
|
Package G: |
2mm, 3mm cable or 900um loose tube |
● Coupling Ratio/Insertion Loss Conversion Chart:
|
Coupling Ratio |
lnsertion Loss |
|
|
Premium |
A Grade |
|
|
40/60 |
4.7/2.7 |
5.0/2.9 |
|
30/70 |
6.0/2.0 |
6.4/2.2 |
|
20/80 |
7.9/1.5 |
8.5/1.7 |
|
10/90 |
11.3/0.65 |
12.0/0.8 |
|
5/95 |
14.8/0.4 |
15.3/0.55 |
|
1/99 |
22.5/0.3 |
23.0/0.35 |
● Order Information:
|
A |
Port Number |
12=1 x 2……………. |
|
22=2 x 2……………. |
||
|
B |
Wavelength |
Single Window:850nm,1310nm,1490nm,1550nm |
|
Dual Windows: 850nm/1310nm, 1310nm/1490nm, 1310nm/1550nm, 1310nm/1490nm, |
||
|
Three Windows:1310nm+1490nm+1550nm |
||
|
Wide wavelength: 1260nm to 1620nm |
||
|
C |
Coupling Ration(01~50) |
1/99 ~ 50/50 |
|
D |
Pigtail Type |
1=250um Bare Fiber |
|
2=900um Loose Tube |
||
|
3=2mm Cable |
||
|
4=3mm Cable |
||
|
E |
Encapsulation Size(mm) |
S1=Ф3.0*54 |
|
S2=Ф3.0*60 |
||
|
S3=90*20*10 |
||
|
S4=100*80*10 |
||
|
S5=120*80*18 |
||
|
S6=140*115*18 |
||
|
F |
Pigtail Length(for each port) |
1=1m |
|
2=1.5m |
||
|
3=Customer Length |
||
|
GH |
Connector(Input/output) |
FP=FC/PC |
|
FA=FC/APC |
||
|
SP=SC/PC |
||
|
SA=SC/APC |
||
|
ST=ST/PC |
||
|
LP=LC/PC |
||
|
LA==LC/APC |
||
|
00=None |
||
|
CS=Customer Specified |
