DWDM Mux/Demux DWDM Mux/Demux DWDM Mux/Demux DWDM Mux/Demux

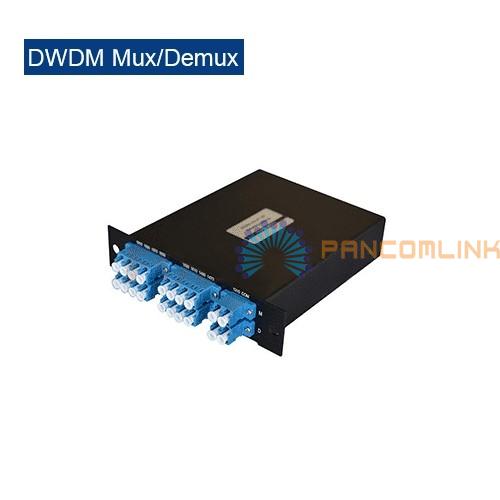

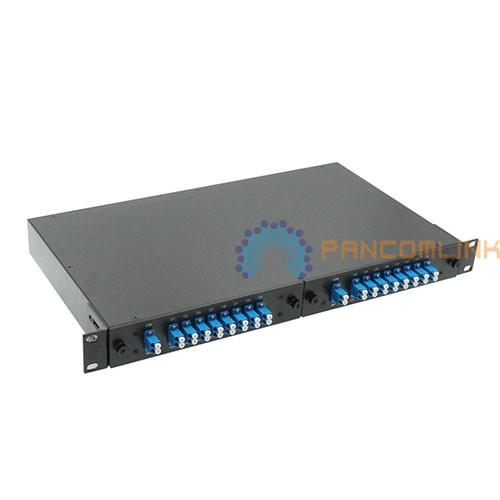

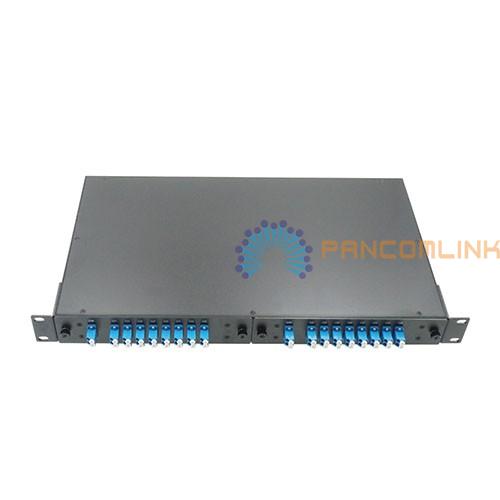

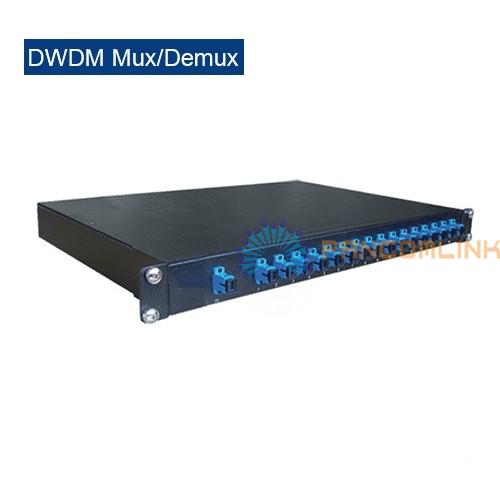

DWDM Mux/Demux

  • Product Item:PCLINK-DWDM-Mux/Demux
  • DWDM Mux/Demux
    Inquiry Send Email

    Description

    ● DWDM MUX/DEMUX:

    DWDM system supports ultra-long-haul transmission via a single fiber, coupled with DWDM MUX/DEMUX and OADM with speed protocols of up to 100G/200G per channel. DWDM passive Mux/Demux modules deliver the benefits of a Dense Wave Division Multiplexer in a fully passive solution. DWDM Mux/Demux are modular, scalable and are perfectly suited to transport PDH, SDH/SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks.


    ● Features:

    ● Low insertion loss

    ● Based on thin-film filter or AWG technology

    ● DWDM 100GHz or 50GHz ITU Channel Spacing,C17-C61 & H17-H61, X channels over Single or Duplex fiber

    ● LC/SC/FC/ST, UPC/APC Interface are available

    ● Rate transparent for applications up to 10Gbps

    ● Monitor/Upgrade/1310nm Express port for external functions

    ● Completely passive, no electric power required

    ● Low-profile modular LGX box design optional, fits in LGX chassis


    ● Application:

    Applications in DWDM Network


    ● Specification:

    Parameter

    Unit

    Specification

    Operating Wavelength Range

    nm

    1500 ~ 1600

    Channel Number

    -

    X+UPG

    Center Wavelength

    nm

    Customer specified X wavelengths, such as C53 C54 C55 C56 C57

    C58 C59 C60 (X=8) etc

    Channel Spacing

    GHz

    100

    Channel Passband (@-0.5dB)

    nm

    ≥0.11

    Insertion Loss (With Connector)

    dB

    ≤3.2

    Adjacent Channel Isolation

    dB

    ≥30

    Non-Adjacent Isolation

    dB

    ≥40

    UPG Port Isolation

    dB

    ≥12

    PDL

    dB

    ≤0.2

    Directivity

    dB

    ≥50

    Return Loss

    dB

    ≥45

    PMD

    ps

    ≤0.20

    Operating Temperature

    ℃

    -10 to +70

    Storage Temperature

    ℃

    -40 to +85

    Fiber Type

    G657A1 Fiber

    Connector Type

    LC/UPC or others

    Communication Type

    Single or Dual Fiber

    Optional functions

    1310 Express port: 1310+/-40nm; Upgrade port: Unused wavelength section; Moniter port: 1%;

    Packaging Dimension

    DWDM Module :100*80*10.5;140*115*18; 1*2 WDM filter:Φ5.5*38;90x20x10

    Note:The specific parameters are subject to the product specifications.


    ● Order Information:

    Ordering Info. for DWDM MUX/DEMUX

    Part Number:WM-16XM-41A1-LLU-R

                             1 23  456  789 1011
    Product Description:DWDM 100GHz Mux/Demux Dual Fiber 19inch Rack Fixed 2×16 wavelengths C41-C56 G.657.A1 LC/UPC

    1 - Number of wavelengths

    8: 8 wavelengths; 16: 16 wavelengths; 40: 40 wavelengths; etc

    2 - Type

    XM: 100GHz DWDM Mux/Demux; WM: 50GHz DWDM Mux/Demux;

    3 - Optional functions

    E: 1310nm Express port; F: 1550nm port; M: Moniter port; U: Upgrade Port

    4 - First wavelength

    XX: XX refers to the Channel Number;

    17: 1563.86 nm (channel 17); 45: 1541.35(channel 45); etc
    Range: 1528.77nm (channel 61) to 1563.86nm (channel 17)

    5 - Communication Type

    S: Single fiber; Null: Dual fiber;

    6 - Fiber Type

    D: G.652D; A1: G.657.A1;

    7 - COM ports

    L: LC; S: SC; F: FC;

    8 - Other ports

    L: LC; S: SC; F: FC;

    9 - Endface

    U: UPC polish; P: PC polish; A: APC polish

    10 -Package

    L: LGX; R: 19 inch Rack Fixed; 2LR: 19 inch Rack with 2 LGX box;

    11 - Height

    Null: 1U; 2: 2U; 3: 3U; etc
