Description

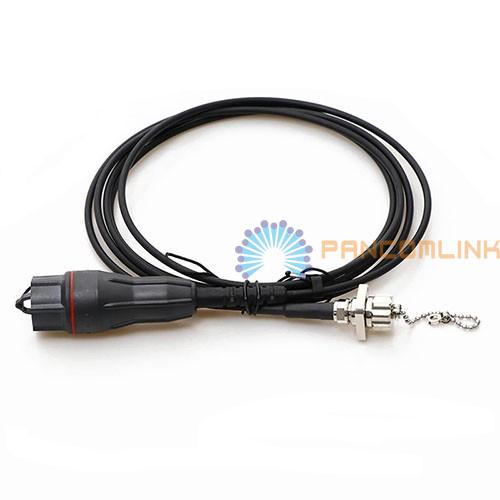

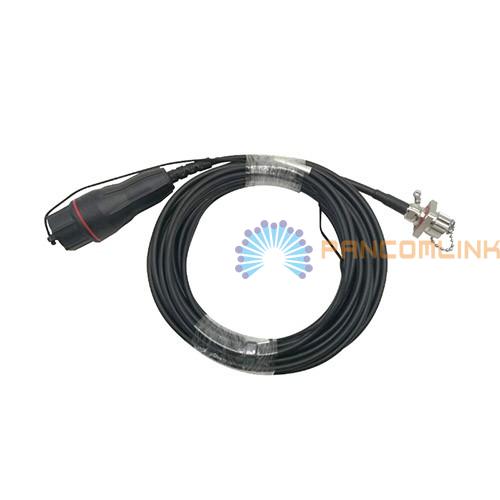

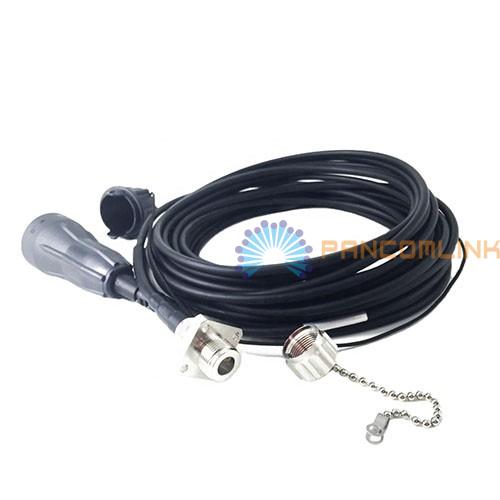

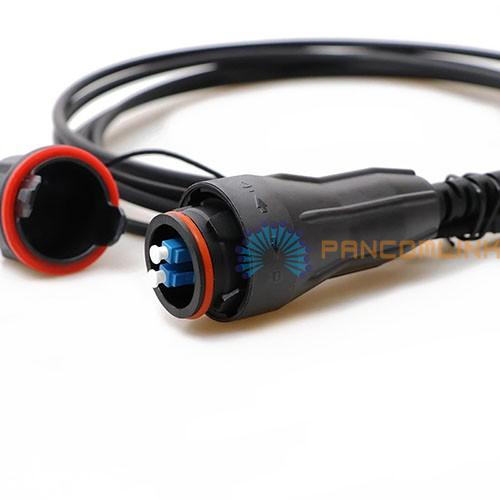

● FULLAXS(LC) Outdoor Waterproof Patch Cable:
Fullaxs, a standard waterproof interface, designed&developed by TE is widely used for the wireless base station linked to FTTA equipment that set up outdoor environment. Compared with ODVA or standard PDLC, Fullaxs its waterproof IP has better performance even up to IP68, and it also has higher sealability and strength. As we known, not only TE Fullaxs fall with Ericsson’s equipments and facilities, but also Rosenberger and Senko does. Although their appearance are not the same, TE Fullaxs, Rosenberger&Senko are compatible.
Fullaxs, Fiber-to-the-Antenna Connector next generation Wimax technology features a long term evolution fiber to antenna connection design. This allows for the usage of strong cable assemblies on the outdoors. Direct connections allow for the cable assembles through the bulkhead construction to be plugged directly into the optical transceivers. This accommodates a large Z tolerance, which allows the usage of the widest range of transceivers available on the market. End users now have the ability to choose from multiple transceivers.
Fullaxs fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WIMAX/GSM) tailored products that can meet the FTTA (fiber to the Antenna) program requirements for outdoor environment conditions and adverse weather conditions.
● Features:
• Open bulkhead for easy access to SFP
• Robust bayonet locking for easy, fast, and secure mating
• IP67 waterproof, dustproof and corrosion resistant
• Plug has tolerance free design, fully free floating on Z-axis
• No cable buckling during or after installation
• Cost effective metal die cast bulkhead
• Field installable version available
• Low insertion loss and added loss
• ROHS and REACH materials compliant
• 100% compatible with Fullaxs connectors and has site technical features

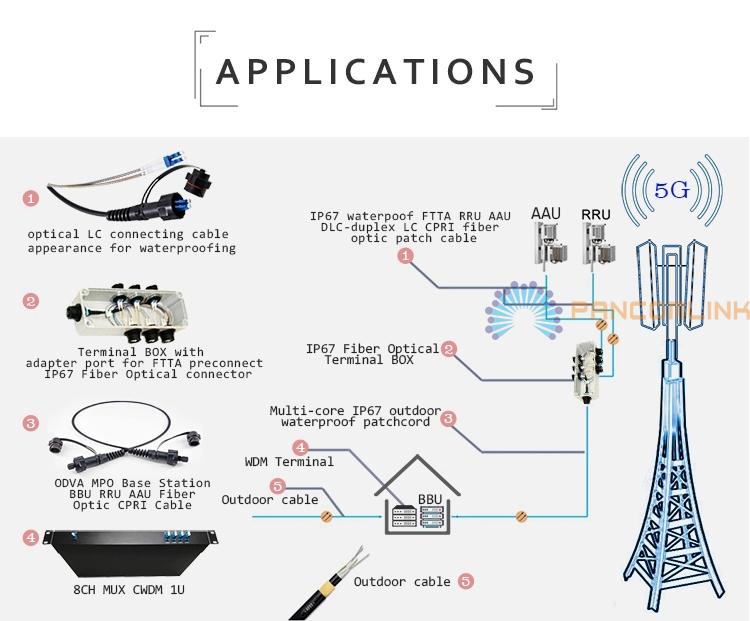

● Application:
• Fiber-to-the-Antenna (FTTA)
• Wimax and LTE Base Stations
• Remote Radio Heads (RRH)
• Industrial outdoor applications
• Robotics
• Aerospace&Defense

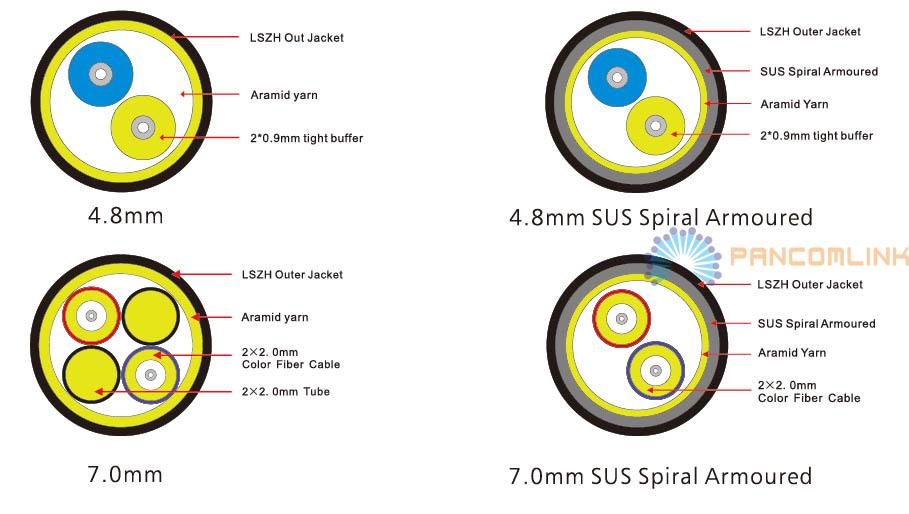

● Cable Parameter:
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥35dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
