Description

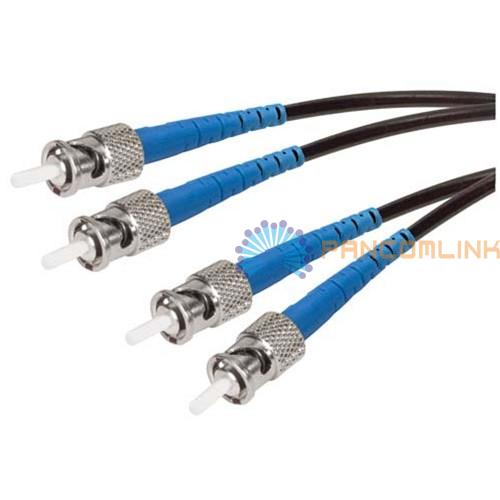

● Military Grade Fiber Cable:
Military Grade Fiber Cables are built with specialized Military Tactical fiber cable that features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant, wear resistant and flame retardant. Therefore, armored tactical cable is ideal for both indoor and outdoor applications, such as rapid wiring/repeated retrieval in military field or connecting the networks of two buildings through the use of an underground conduit or direct buried. Military Fiber Cable assemblies are excellent for use in military vehicles and with field deployed communications equipment.
● Features:

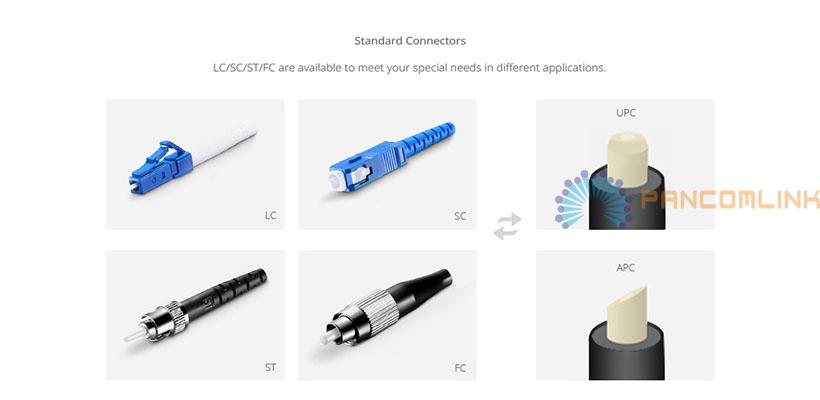

►LC/SC/ST/FC/MTP/ODC/YZC/IP67 are available;
►Strong Tensile Strength;
►Strong Pressure Resistance;
►Good Flexibility Characteristics.
● Application:
►Military emergency communications;
►Broadcast television;
►Emergency rush through optical fiber communications;
►Mining and other outdoor applications.
● Specification:
|
Item |
Description |
|
Connector Type |
LC/SC/ST/FC/MTP/ODC/YZC/IP67 (Customized) |
|
Polish Type |
APC/UPC |
|
Fiber Mode |
OS2/OM1/OM2/OM3/OM4 |
|
Fiber Grade |
G.657.A2/Bend Insensitive |
|
Fiber Count |
1～24 Fibers |
|
Wavelength |
1310/1550nm (SM), 850/1300nm (MM) |
|
Min. Dynamic Bend Radius |
20D(mm) |
|
Min. Static Bend Radius |
10D(mm) |
|
Insertion Loss(dB) |
LC/SC/ST/FC≤0.3, ODC/YZC≤1.0, IP67 LC/SC≤0.5 |
|
Return Loss(dB) |
UPC≥50/APC≥50 (SM), ≥20 (MM) |
|
Attenuation (SM) |
0.36dB/km at 1310nm, 0.22dB/km at 1550nm |
|
Attenuation (MM) |
3.0dB/km at 850nm, 1.0dB/km at 1300nm |
|
Crush Resistance (N/100mm) |
1000 (Long Term)/3000 (Short Term) |
|
Impact Resistance |
200 Impacts |
|
Flex Resistance |
2000 Cycles |
|
Tensile Load (N) |
200 (Long Term)/600 (Short Term) |
|
Breakout Diameter |
3.0mm (1～4 Fibers), 2.5mm (6～24 Fibers) |
|
Trunk Diameter |
3.0mm-7.0mm |
|

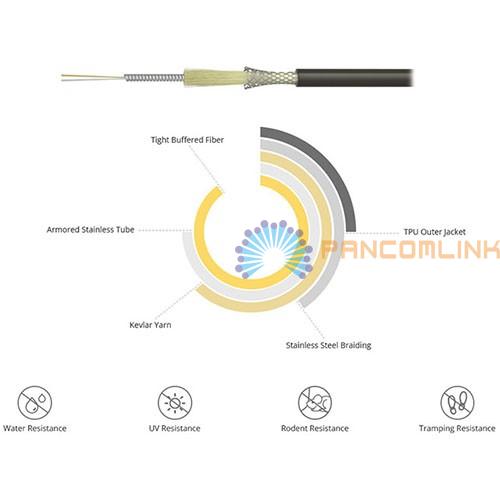

Cable Jacket |
TPU (Thermoplastic Polyurethane) |
|
Jacket Color |
Black |
|
Operating Temperature |
-40～+85℃ |
|
Storage Temperature |
-40～+85℃ |
