Description

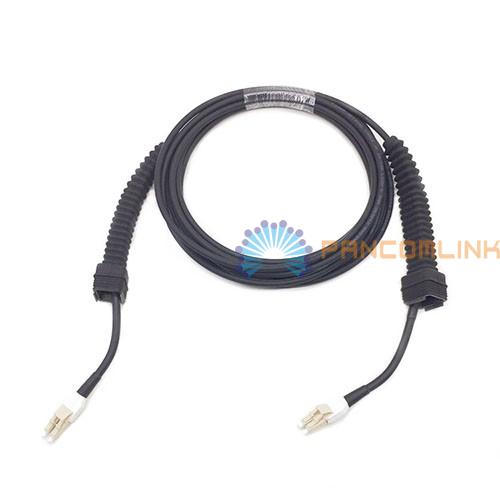

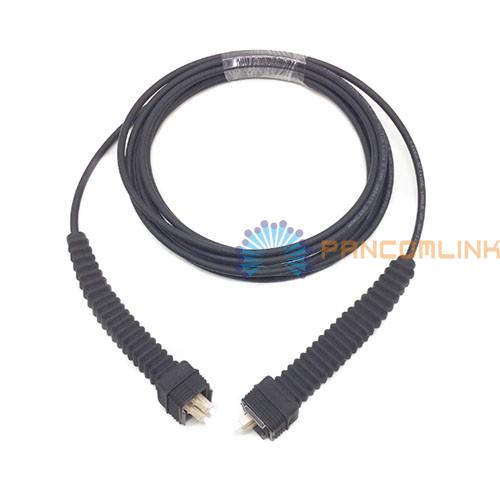

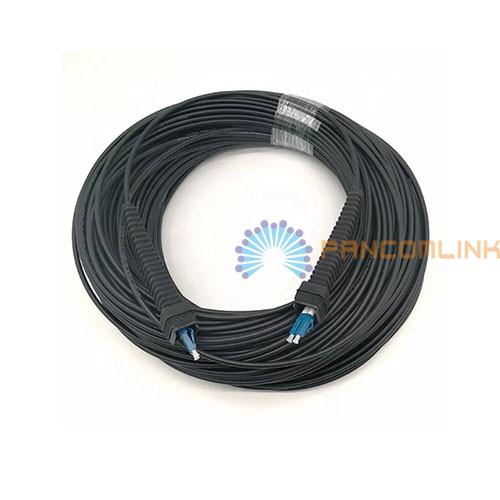

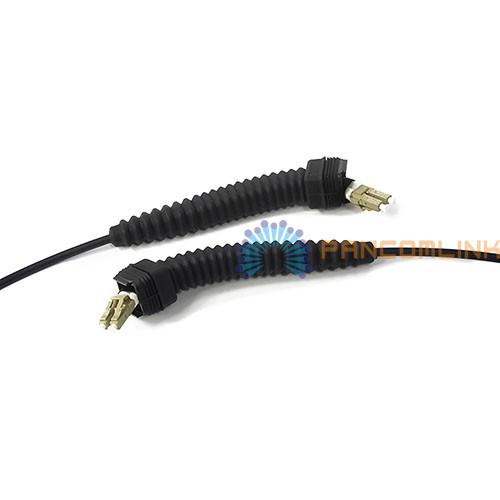

● NSN Boot Dulex LC Outdoor Waterproof Patch Cables:
NSN Boot CPRI Optic Patch Cord cable with flexible boots is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA (fiber to the Antenna) program requirements for outdoor environment conditions. Especially in the 3G, 4G, 5G Base station (BBU to RRU). CPRI fiber patch cable are rapidly becoming the standard connector interface.The bulkhead cutout allows for removal of transceiver through the bulkhead. And the cable is Water proof, dust proof and corrosion resistant.
NSN boot LC fiber optic FTTA outdoor patch cord, compatible with Nokia’s FullAXS-LC waterproof connector for latest and next-generation mobile communication systems (Such as UMTS, GSM, CMDA2000, TD-SCDMA, WiMAX, LTE and so on.) deploy fiber-optic feeders to link the telecom tower base station with the remote unit at the antenna mast.
● Features:
• Corrugated steel armor or non armor
• Low insertion loss and added loss
• IP67 water and dust protection
• Easily add/install jumper cables for a future expansion

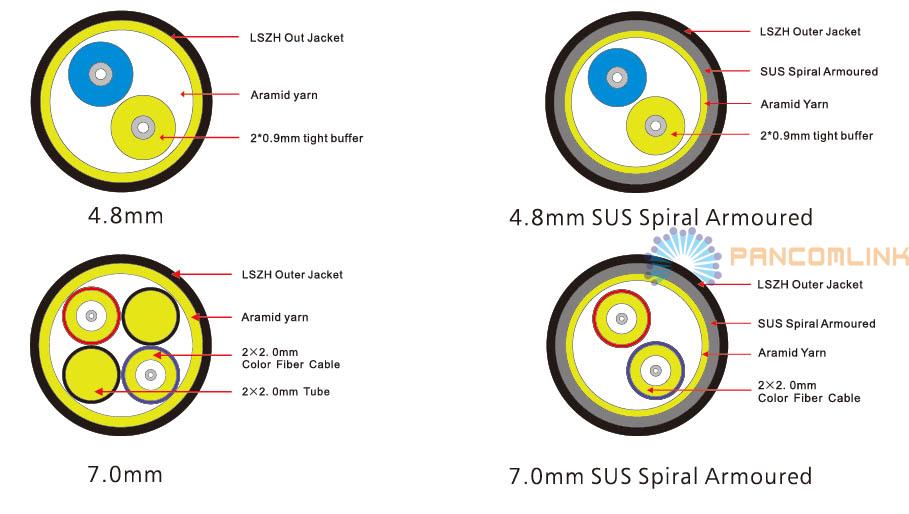

• Optional Diameter: 4.8mm, 7.0mm or Customized
• The connector of side A is DLC, and side-B can be LC, FC, SC etc
• The material in the jumper cable are all-weather and UV-resistant
• Flexibility with small bending radius and excellent cable routing properties
• RoHS and REACH materials compliant
• Mechanical performance: IEC 61754-20 standard
• End-face geometry and quality superior than IEC and Telcordia standards
• Temperature range -40℃to +85℃
● Application:
• Multi-purpose Outdoor
• For connection between distribution box and RRH
• Deployment in Remote Radio Head cell tower applications
● Specification:
|
Duplex tight-buffer fiber + central loose tube/ armoured steel tube + kevlar + OD 5.0mm / 7.0mm jacket cable, connected with NSN boot LC DX connector |
|
|
Side A Connector |
Standard DLC connector |
|
A end polish |
APC, UPC |
|
Side B Connector |
LC, SC, FC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, ODC (Customized) |
|
B end polish |
PC, UPC, APC |
|
Fiber Type |
OS2 G655 G657A1 G657A2 OM1 OM2 OM3 OM4 OM5 |
|
Protection |
IP67 protection, salt-mist proof, humidity proof |
|
Insertion Loss |
≤0.3dB |
|
Mechanical life |
500 cycles |
|
Tensile Data |
Tensile between junction and fiber cable≥100N |
|
Working temperature |
-40°C~+85°C |
|
Used for |
4G/5G base station BBU, RRU, RRH, LTE |
|
Length |
5m, 10m, 20m, 30m, 50m, 100m or customized |
● Cable Parameter:
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥35dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
