Description

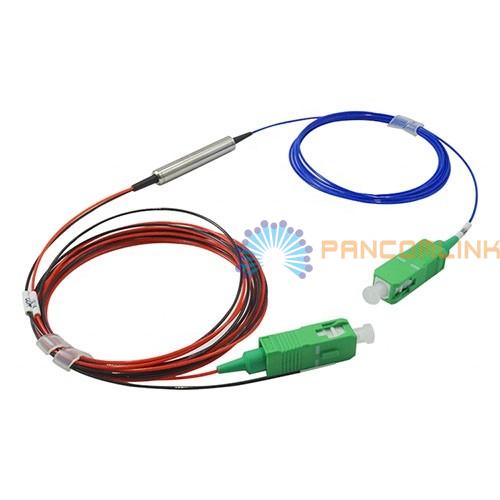

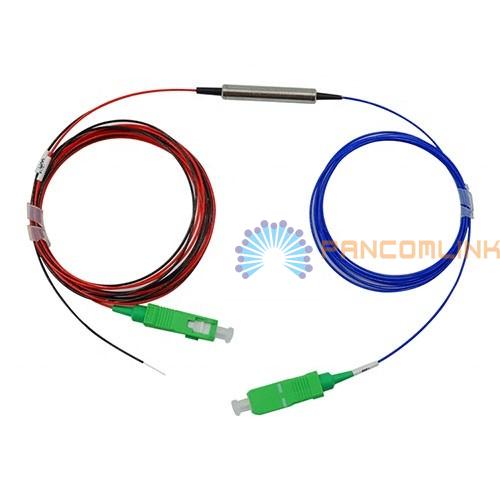

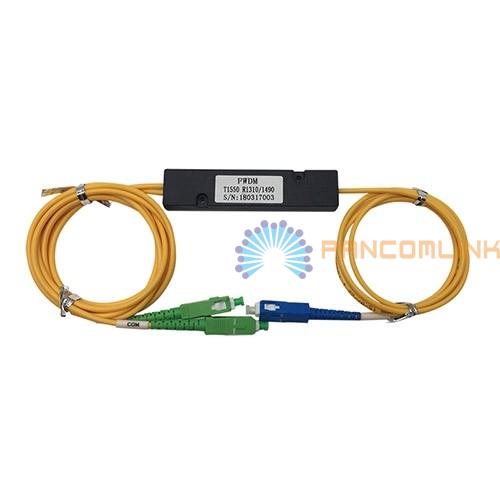

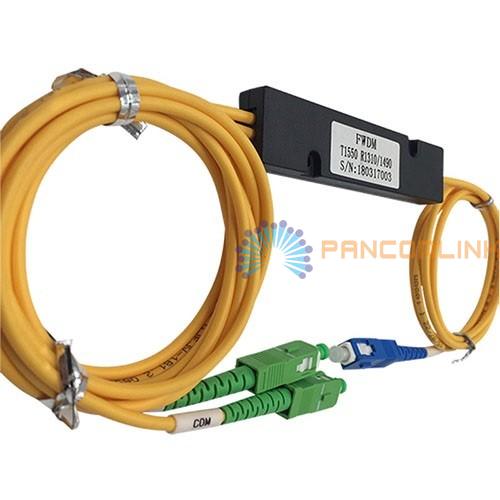

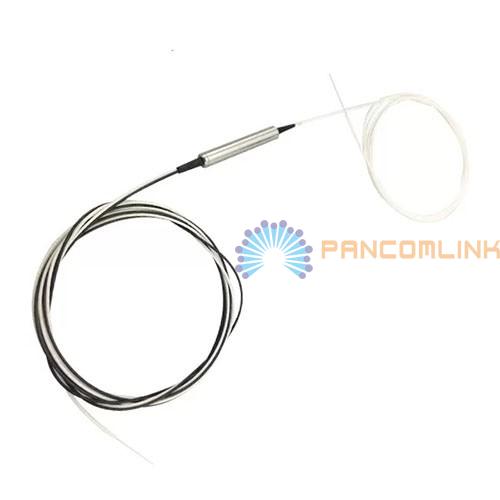

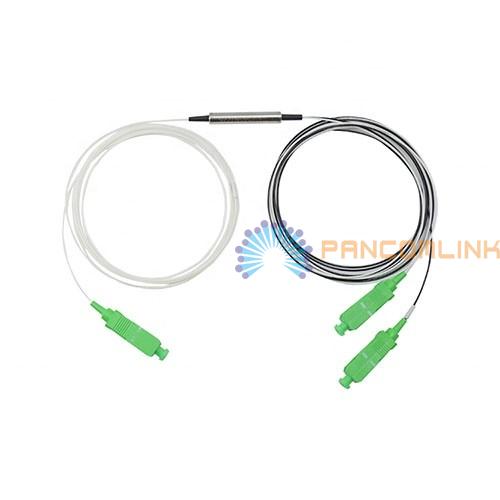

● Filter WDM (FWDM):
FTTX Filter WDM module is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability.
FTTH/FTTx 1310/1550nm FWDM Filter WDM can realize the multiplexing and de-multiplexing of communication optical signals of 1310nm and 1550nm. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.
GEPON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get's "mixed".
● Features:
● Low Insertion Loss
● High Channel Isolation
● Optical path epoxy free
● Excellent thermal stability and reliability
● High Isolation
● RoHS Compliant
● Application:
● CWDM and DWDM Network
● Add/Drop System
● CATV Fiber optic System
● Metro/Access Network
● Fiber Optical Amplifier
● Specification:
|
Parameters |
|
||||||
|
Working wavelength (nm) |
T13/R15 |
T15/R13 |
T13/R1415 |
T14R1315 |
T15R1314 |
T1415R13 |
T1314R15 |
|
Transmission wavelength range (nm) |
1310+/-40 |
1550+/-40 |
1310+/-40 |
1490+/-10 |
1550+/-10 |
1490+/-10& 1550+/-10 |
1310+/-40& 1490+/-10 |
|
Reflection wavelength range (nm) |
1550+/-40 |
1310+/-40 |
1490+/-10& 1550+/-10 |
1310+/-40& 1550+/-10 |
1310+/-40& 1490+/-10 |
1310+/-40 |
1550+/-10 |
|
Transmission end insertion loss (dB) |
0.8 (0.6 Typ.) |
||||||
|
Reflective Insertion Loss (dB) |
0.6 (0.4 Typ.) |
||||||
|
Transmission end isolation (dB) |
30 |
||||||
|
Reflector Isolation (dB) |
15 |
||||||
|
Flatness (dB) |
0.3 |
||||||
|
Polarization dependent loss |
0.1 |
||||||
|
Polarization mode dispersion |
0.1 |
||||||
|
Return loss |
45 |
||||||
|
Directionality |
50 |
||||||
|
Maximum withstand optical power (mw) |
500 |
||||||
|
Working temperature (℃) |
-40～85 |
||||||
|
Storage temperature (℃) |
-40～85 |
||||||
|
Package specifications(mm) (Φ×L) |
Φ5.5*L34 |
||||||
● Order Information:
|
LWD |
- |
XX |
X |
XX |
X |
XX |
- |
X |
X |
X |
|
|
|
Port Configuration |
WDM Type |
Center Wavelength |
Fiber Type |
Output Fiber Length |
|
COM Port Connector |
Pass Port Connector |
Reflection Port Connector |
|
L-Lintegrity |
|
01=1*1 |
F=FWDM |
1=T13/R15 |
B=250um bare fiber |
10=1.0m |
|
0=None |
0=None |
0=None |
|
W=WDM |
|
02=1*2 |
|
2=T15/R13 |
L=900um loose tube |
12=1.2m |
|
1=FC/UPC |
1=FC/UPC |
1=FC/UPC |
|
D=Device |
|
|
|
3=T13/R1415 |
T=900um tight buffer |
15=1.5m |
|
2=FC/APC |
2=FC/APC |
2=FC/APC |
|
|
|
|
|
4=T14R1315 |
|
…… |
|
3=SC/UPC |
3=SC/UPC |
3=SC/UPC |
|
|
|
|
|
5=T15R1314 |
|
XX=Customized |
|
4=SC/APC |
4=SC/APC |
4=SC/APC |
|
|
|
|
|
6=T1415R13 |
|
|
|
5=LC/UPC |
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
7=T1314R15 |
|
|
|
6=LC/APC |
6=LC/APC |
6=LC/APC |
|
|
|
|
|
|
|
|
|
X=Customized |
X=Customized |
X=Customized |
