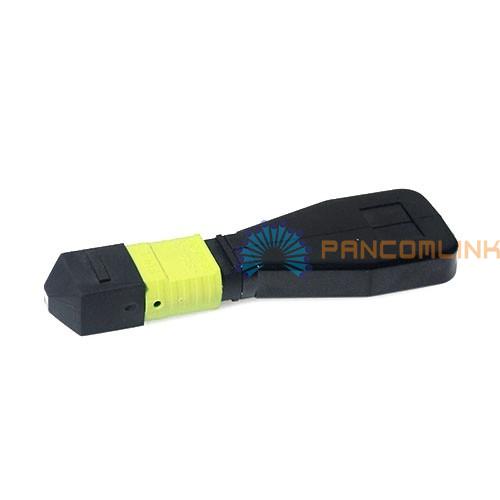

MTP/MPO Female/Male OS2 Singlemode Loopback with Boot

Description

● MTP/MPO Loopback

MTP/MPO loopback modules are used widely within testing environment especially within parallel optics 40G networks. Devices allow verification and testing of transceivers featuring MTP/MPO interface–40GBASE-SR4/CSR4 QSFP+ devices. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MTP transceivers interfaces. MTP/MPO loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MTP/MPO trunks/patch leads.

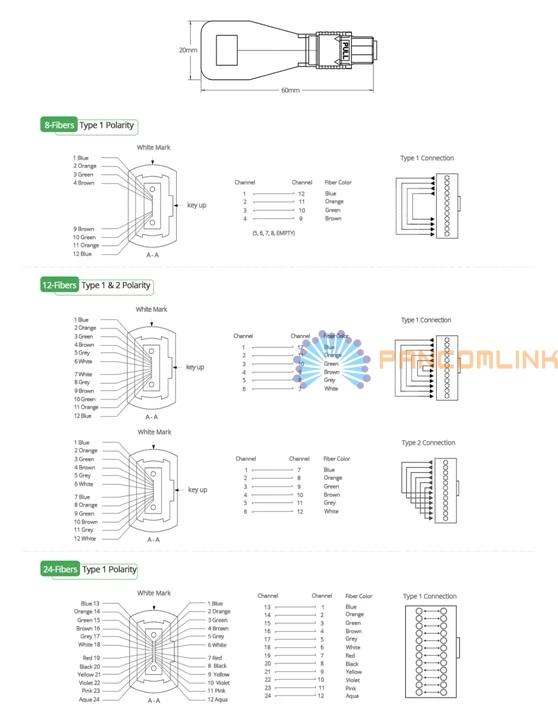

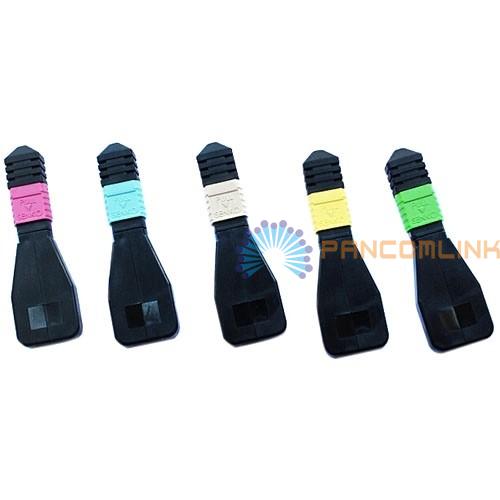

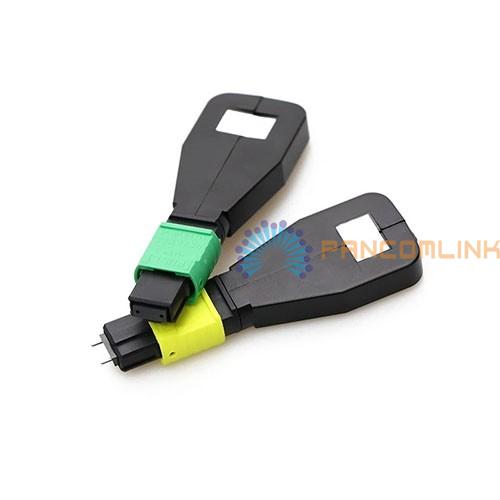

MTP/MPO loopbacks in standard configurations such as for QSFP modules for a QSFP MTP loopback tester. MTP/MPO Loopbacks are also available for any configuration. By “looping back” the connections from the transmit pairs to the receive pairs in network devices, MTP/MPO Loopback creates a complete optical link. This allows you to evaluate the performance of specific components of a network, or the complete link in a network path. Male and female connector types are available. Choose between standard, 'Elite' and 'Super Elite' ferrule styles to minimize insertion loss and provide better testing performance.

● Features:

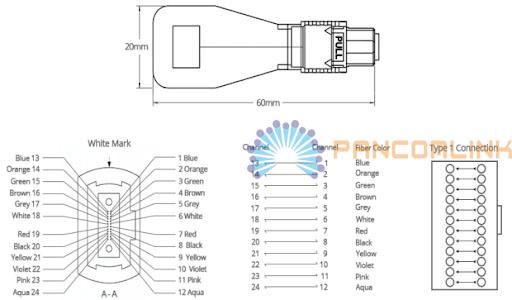

►8, 12, and 24 fiber available;

►Standard fiber array or customized;

►Reliable PIN positing testing for Male/Female PIN;

►Compact and portable with lanyard feature;

►Meets TIA/EIA and IEC intermateability standards;

►Easy installation/removal, available with or without pull tabs;

►Available in a wide variety of wiring configurations and fiber types.

● Application:

►40GbE QSFP+ Optical Testing；

►Data center infrastructure;

►Optical system access network;

►40G and 100Gbps fiber network;

►Storage area networking fiber channel;

►High density architectures.

● Specification:
