MTP/MPO Adapter (Black) with Full Flange

Description

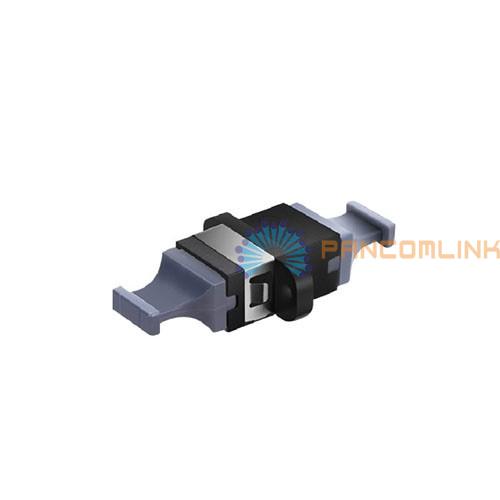

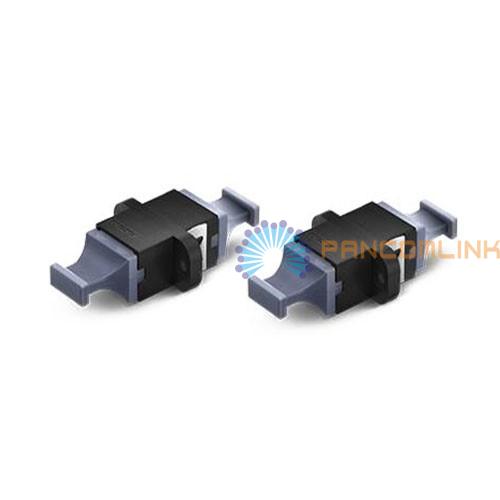

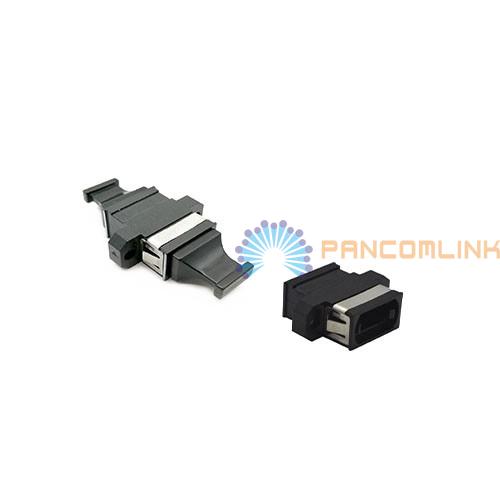

● MTP/MPO Adapter

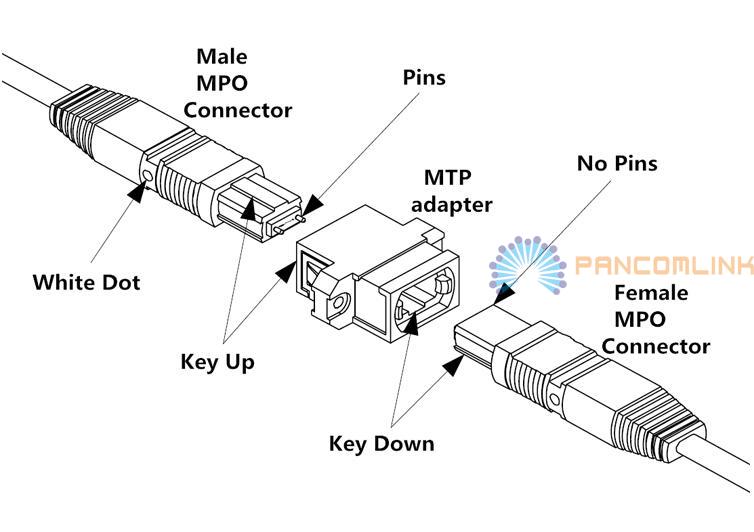

MTP/MPO adapter provides alignment for a male and female MTP/MPO connector. The housing is available with MTP/MPO or SC footprint, aligned or opposed alignment keys, different colors and with options for flange or flangeless body.

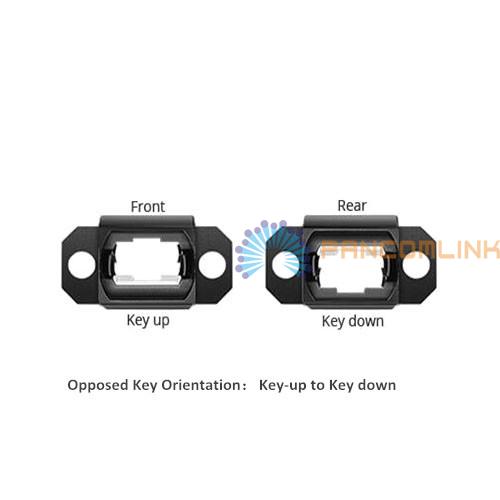

MTP/MPO adapter has two types as key-up to key-down and key-up to key-up. It provides the connection between cable to cable or cable to equipment in the MTP/MPO style. It works for any MTP/MPO Connector from 4 fibers to 72 fiber, widely used in trunk cabling and cassettes. This adapter meets appropriate standards and is perfect for your parallel optics and MTP adapter needs. MTP/MPO fiber optical adapter comply with industry standard TIA-568C. 3-2008 (standard of fiber optical system) and YD/T1272.5-2009 (fiber optical connector part v: MPO style).

● Features:

►Compact size and precision design;

►High-density optical fiber docking;

►High precision alignment;

►Convenience and easy of handing.

● Application:

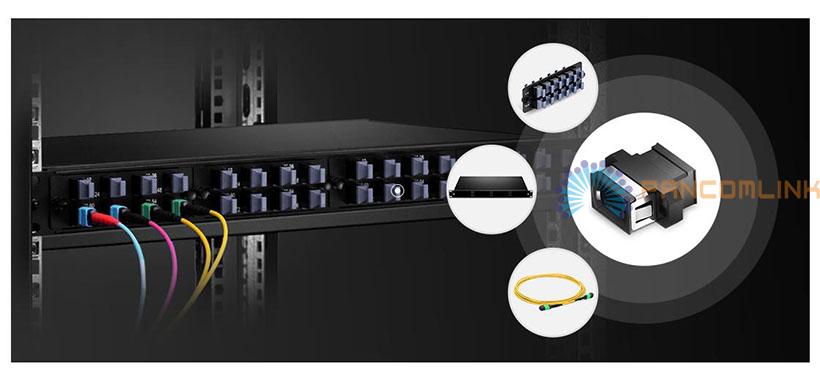

►Data center infrastructure;

►Optical system access network;

►10G/40G/100G networks;

►Optical fiber communication system;

►Video transmission;

►Cable television network.

● Specification:
