Description

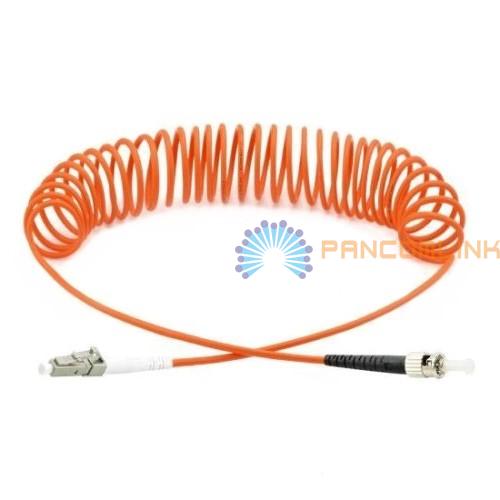

● Curl Fiber Patch Cable
Curl Fiber patch cable is retractable and usable in household wiring and wiring for movable parts of machines. The meters is point to the length of the cable after straightening. Bending diameter, Bending laps, the curl length and total length can be customized. PancomLink offers simplex and duplex curl fiber patch cable terminal with different types of connectors like LC, SC, ST, FC, MTRJ and E2000 etc.
● Features:
►It can adjust length of cable;
►It can stretch several times without deteriorating the optical characteristics;
►It is durable enough to be used for movable parts of machines and as a connecting cord for instruments.
● Application:
►Fast In-pipe wiring;
►Robotic arm sensor communication;
►Fast deployable local area network;
►Telecommunication, remote ONU&FTTX;
►Data communication, CATV & test equipment.
● Specification:
|
Cable OD |
2mm/3mm |
|

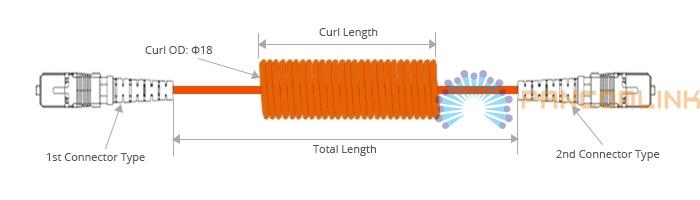

Curl OD |
18mm--22mm |
|
Curl Length(cm) |
According to customer’s requirements |
|
Total Length(cm) |
According to customer’s requirements |
|
Fiber Type |
Bendsafe G657B |
|
Cable Material |
TPU(white) |
|

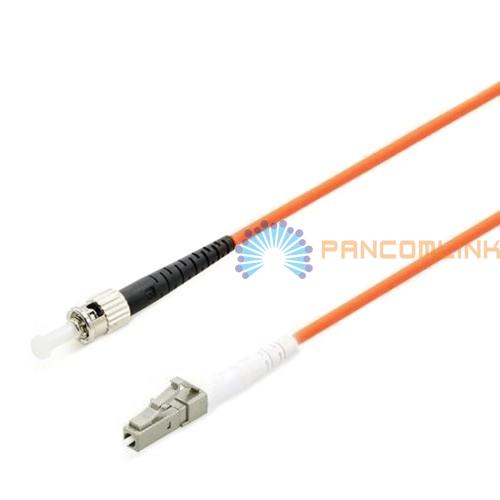

Connector Type |
LC, SC, ST, FC, MTRJ, E2000 etc |
|
Insertion Loss(dB) |
<1dB for 100 turns |
|
Return Loss(dB) |
UPC>=50,APC>=60 |
|
Operating Temperature(℃) |
-40℃~+80℃ |
|
Storage Temperature(℃) |
-45℃~+85℃ |
|
Fireproof Standard |
IEC 60332-3 |
