Description

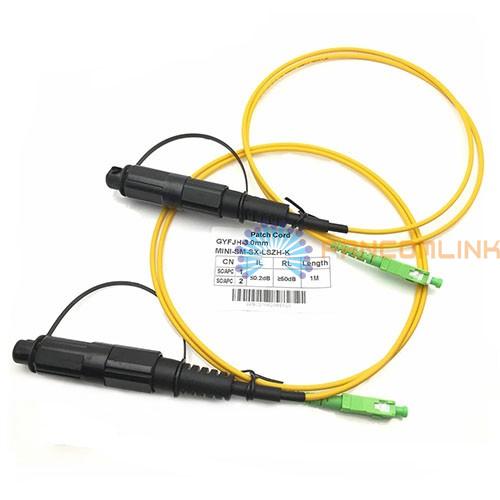

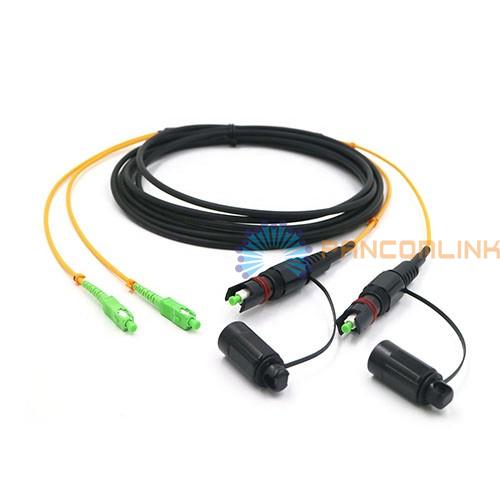

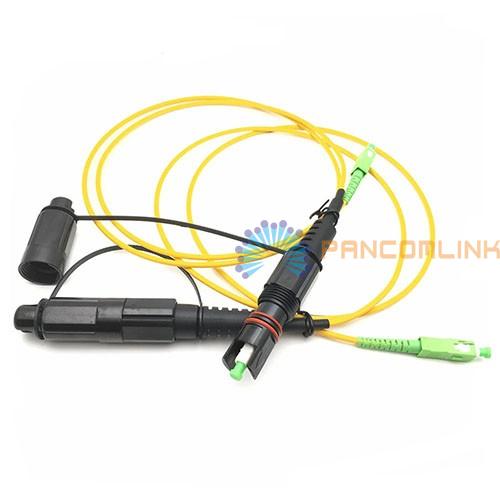

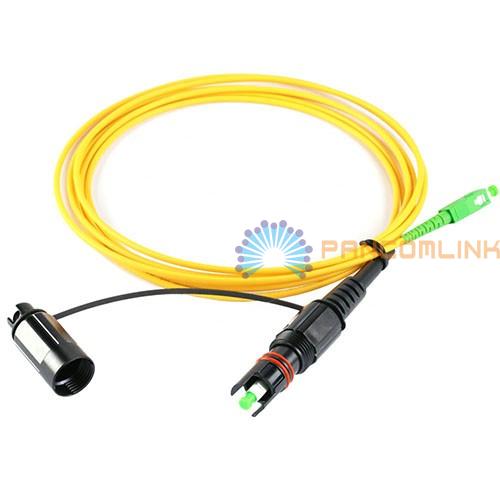

● Mini IP (SC/LC/MPO) Outdoor Waterproof Cable:
MINI-SC waterproof connector is a small, high-water resistant SC single-core waterproof connector. The built-in SC connector inner core better reduces the volume of the waterproof connector, adopts a special plastic shell that is resistant to high temperature and low temperature, acid and alkali corrosion, and is resistant to ultraviolet light, and assists in waterproof rubber pads.
● Features:
• Compact size, easy to operate, durable
• Easy connection to hardened adapters on terminals or closures
• Reduce welding, connect directly to achieve interconnection
• IP67/IP68 water and dust protection
• Spiral clamping mechanism ensures long-term reliable connection
• Guide mechanism, can be blinded with one hand, simple and quick, connect and install
• Seal design: It is waterproof, dust-proof, anti-corrosion and so on.

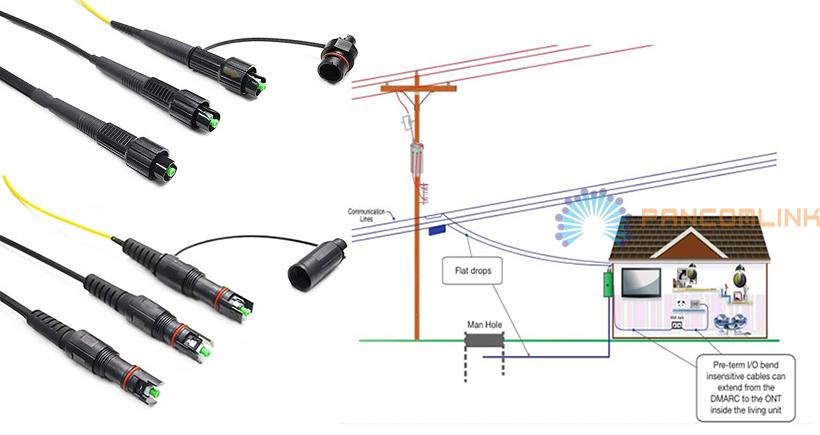

● Application
• Fiber optic communications in harsh outdoor environments
• Outdoor communication equipment connection
• Remote wireless base station
• FTTX wiring project

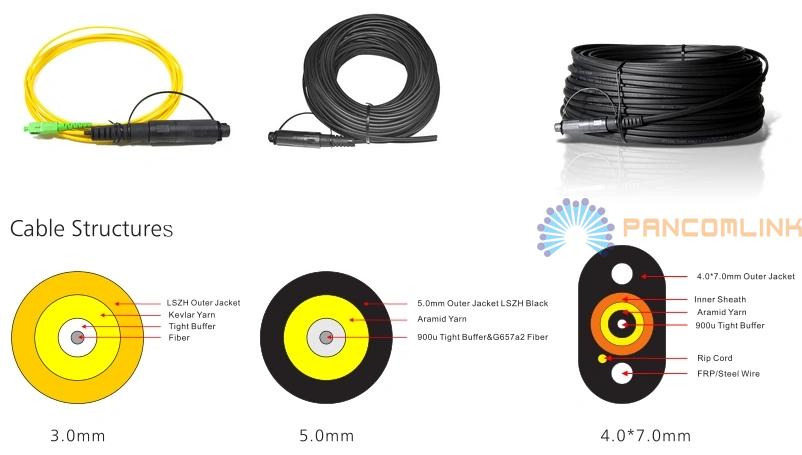

● Cable Parameters:
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥35dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
