Description

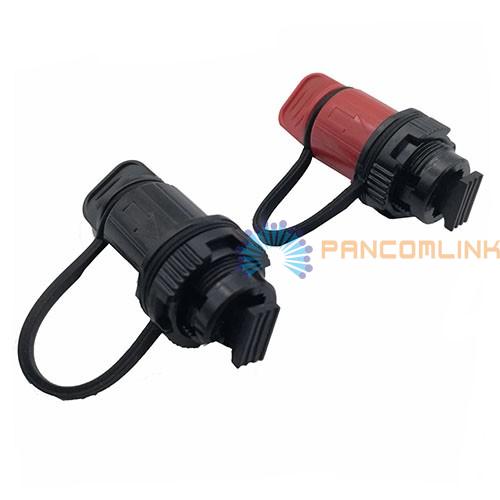

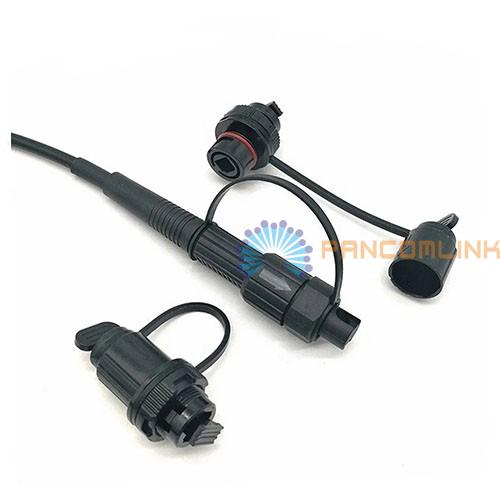

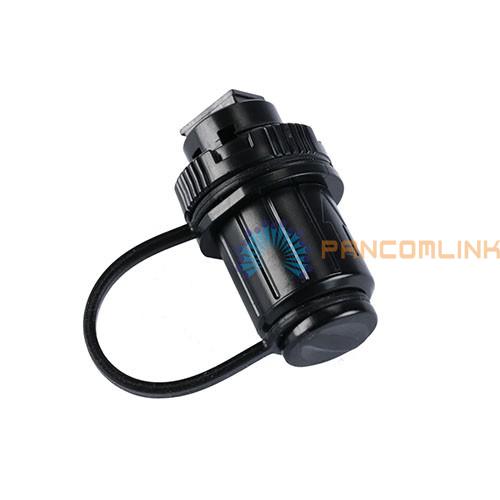

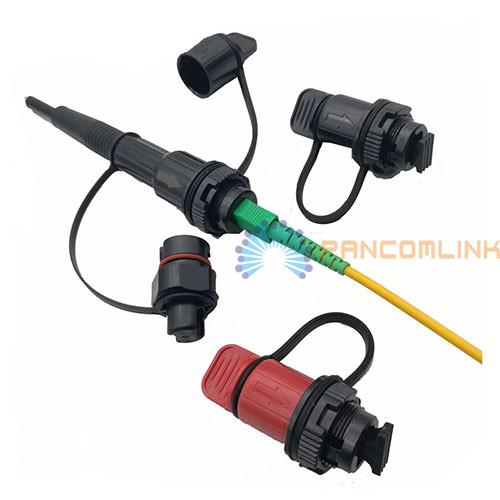

● IP67 Waterproof Mini SC Adapter Compatible for Huawei IPSC Device:
Mini SC adapters offer a very easy FTTX (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. It’s flat profile is compatible with existing wedge (P) clamps.
Mini SC adapter is compatible with Mini SC connectors, easy, environmental seal and mechanical protection for simplex SC style connections.
● Features:
• Inside cover can protect ferrule end face far away scratch when mating with receptacle.
• Special fool-proofing design equal to Mini SC connector has blind-mating function.
• One hand Bayonet-style mechanical latch
• The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch.
• It provides quick installation solutions and has good performance on mating receptacle/adapter.
• The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection.
• The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications.
● Specification:
• Cost effective solution for in house termination
• IP67 Water immersion and Dust protection for hash environment
• Chemical Resistance
• Simple assembly requiring no special tools
• Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
• Durable mechanical mating, minimum of 500 matings
• Wide range of operational temperature for outside plant: -40 to+85°C
• SC/APC IL<0.2dB typically
• 100% optically tested to ensure quality performance assemblies
