Description

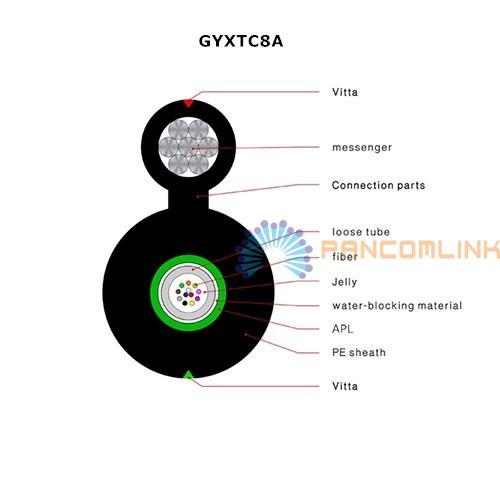

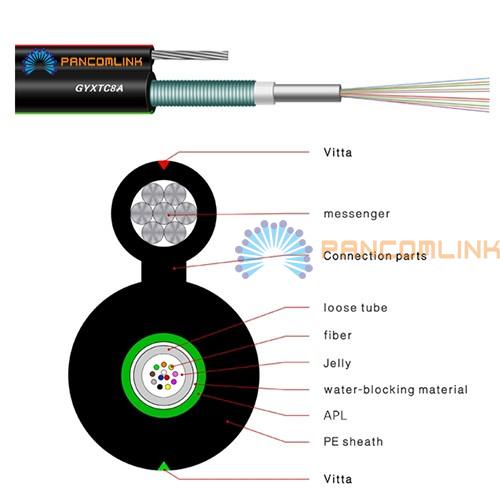

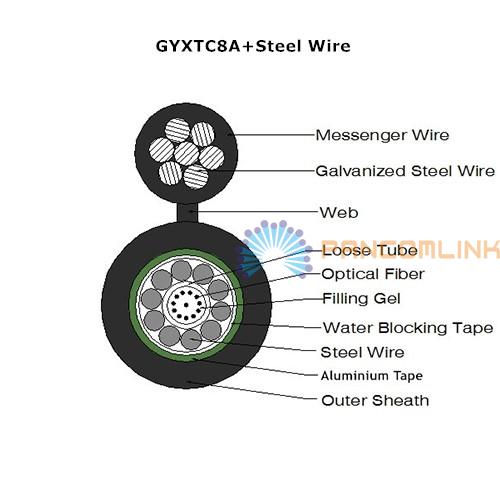

● GYTXC8A Figure 8 Central Tube Aerial Self-Support APL Armored Outdoor Cable:
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tube with water-blocking material is filled with a water-resistant filling compound. An Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the tube. This part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
● Features:
►High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost;
►Good mechanical and temperature performance;
►High strength loose tube that is hydrolysis resistant;
►Special tube filling compound ensure a critical protection of fiber;
►The following measures are taken to ensure the cable watertight:
·Loose tube filling compound
·100% cable core filling
·APL moisture barrier
►GYXTC8A cable complies with Standard YD/T 1155-2011 as well as IEC 60794-1.
● Application:
►Aerial Laying;
►Suitable for long-distance communication and indoor communication.
● Optical Characteristics:
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300nm |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelengthλcc |
|
≤1260nm |
≤1480nm |
|
|
● Technical Parameters:
|
Cable Type |
Fiber Count |
Cable Diameter |
Cable Weight Kg/km |
Supporting Wire Spec |
Connection
Diameter |
Tensile Strength N |
Crush Resistance |
Bending Radius mm |
|
GYXTC8A |
2～12 |
9.6×17.0 |
144 |
ф1.0mm×7 |
High*width 3.0×2.5 |
2500/5500 |
800/2000 |
15D/30D |
|
GYXTC8A |
14～24 |
10.1×17.5 |
162 |
ф1.0mm×7 |
High*width 3.0×2.5 |
2500/5500 |
800/2000 |
15D/30D |
|
Storage/Operating Temperature : |
40℃ to +70℃ |
|||||||
