Description
● GYMXW Stainless Steel Parallel Steel Wire Reinforced Cable:

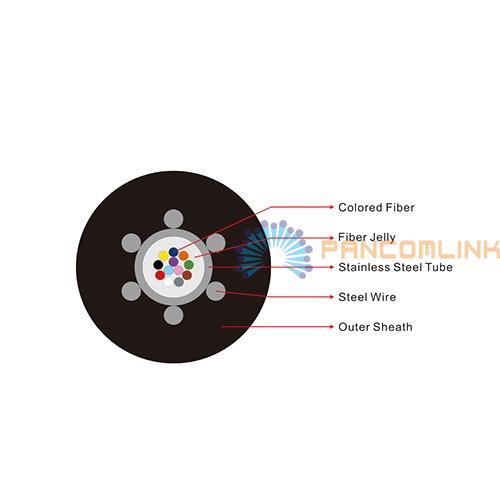

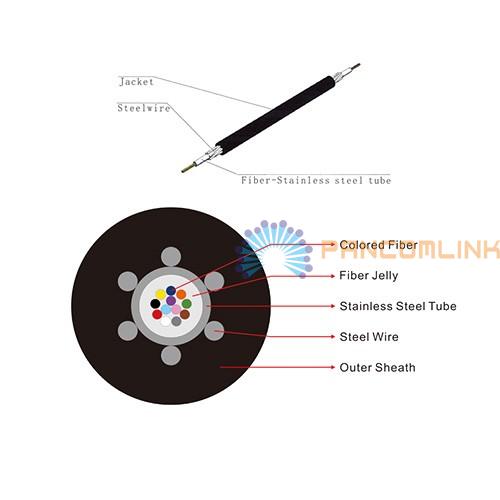

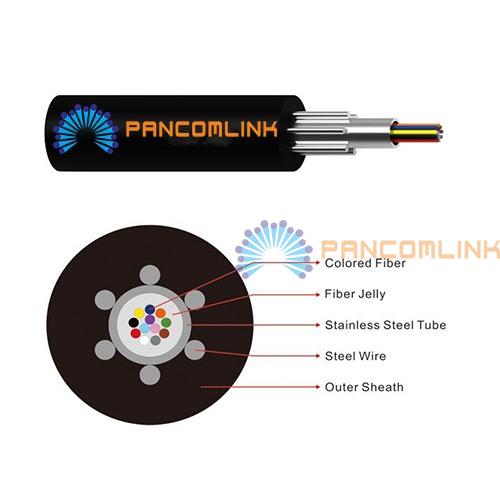

F-SST steel wire reinforced cable contains mini F-SST as optical fiber unit and 6 steel wire or wire rope strengthening member. The maximum core is 24. It is jacketed with PE or PA. F-SST steel wire reinforced cable has small size and low weight. With perfect mechanical performance and wide temperature and wide temperature range, it can withstand the strong pressure, harsh environment and is suitable for wide range and convenient for laying.
● Features:
►Small size and low weight;
►Good mechanical performance, withstanding the tensile force and force and super pressure;
►Waterproof, moisture-proof, anti-rodents, no rusty;
►Resistance to acid, alkali, salt corrosion;
►Non-toxic, flame retardant, fire and explosion proof;
►Outstanding high and low temperature performances.
● Application:
►Indoor cabling;
►Pipe laying;
►Ground slot laying;
►Temperature sensing cable;
►Fire monitoring.
● Optical Characteristics:
|
|
G.652 |
G.655 |
50/125 μm |
62.5 / 125 μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB / km |
≤3.0dB / km |
|
@1300nm |
|
|
≤1.0dB / km |
≤1.0dB / km |
|
|
@1310nm |
≤0.36dB / km |
|
|
|
|
|
@1550nm |
≤0.22dB / km |
≤0.23dB / km |
|
|
|
|
Bandwidth |
@850 |
|
|
≥ 500MHZ · km |
≥ 500MHZ · km |
|
@1300 |
|
|
≥1000MHZ · km |
≥600MHZ · km |
|
|
Numerical aperture |
|
|
|
0.200 ± 0.015NA |
0.275 ± 0.015 NA |
|
Cable cut-off wavelength |
|
≤1260nm |
≤1480nm |
|
|
● Specification (Replacement: GYTA, GYTS, GYXTW, GYXTC8S, GYTC8S):
|
Fiber Count |
Structure Size |
Cable Weight |
Allowable Tensile Force (N) |
Allowing Crush Force (N) |
||
|
Pipe Diameter |
Wire Diameter |
Cable Diameter |
Kg / km |
Long-term / Short-term |
Long-term / Short-term |
|
|
4 |
1.35 |
0.3 |
3.95 |
18.4 |
500/1000 |
2000/4000 |
|
6 |
1.5 |
0.45 |
4.6 |
26.3 |
1000/2000 |
2000/4000 |
|
8 |
1.8 |
0.45 |
4.9 |
29.2 |
1000/2000 |
2000/4000 |
|
12 |
2 |
0.45 |
5.1 |
31.2 |
1000/2000 |
2000/4000 |
|
24 |
2.4 |
0.5 |
6 |
41.1 |
1000/2000 |
2000/4000 |
