Description
● GYMXC8Y Stainless Steel Tube Self-Supporting Figure 8 Cable

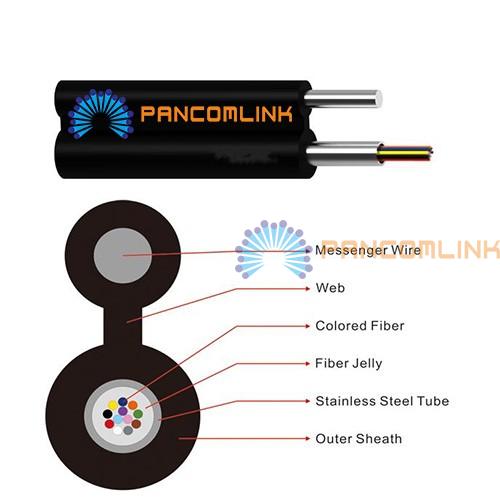

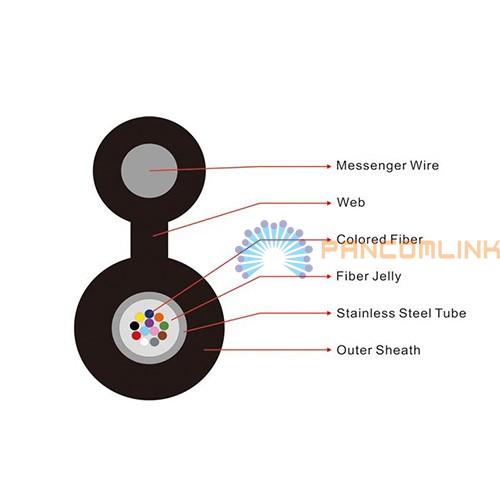

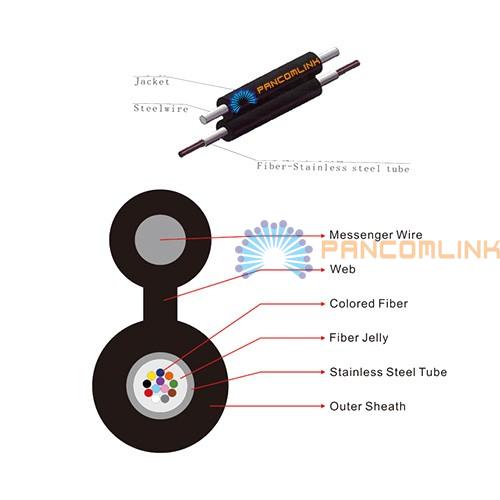

F-SST self-supporting figure 8 cable contains mini F-SST as optical fiber unit and single steel wire or wire rope strengthening members. The maximun number is 24. It is jacketed with LSZH, PE or PA. F-SST self-supporting figure 8 cable has small size and low weight. With perfect mechanical performance and wide temperature and wide temperature range, it can withstand the strong pressure and harsh environment, and is suitable for overhead laying. It is perfect solution to replace the traditional figure 8 cables.
● Features:
►Small size and low weight;
►Good mechanical performance, withstanding the tensile force and force and super pressure;
►Waterproof, moisture-proof, anti-rodents, no rusty;
►Resistance to acid, alkali, salt corrosion;
►Non-toxic, flame retardant, fire and explosion proof;
►Outstanding high and low temperature performances.
● Application:
►Overhead cabling
● Optical Characteristics:
|
|
G.652 |
G.655 |
50/125 μm |
62.5 / 125 μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB / km |
≤3.0dB / km |
|
@1300nm |
|
|
≤1.0dB / km |
≤1.0dB / km |
|
|
@1310nm |
≤0.36dB / km |
|
|
|
|
|
@1550nm |
≤0.22dB / km |
≤0.23dB / km |
|
|
|
|
Bandwidth |
@850 |
|
|
≥ 500MHZ · km |
≥ 500MHZ · km |
|
@1300 |
|
|
≥1000MHZ · km |
≥600MHZ · km |
|
|
Numerical aperture |
|
|
|
0.200 ± 0.015NA |
0.275 ± 0.015 NA |
|
Cable cut-off wavelength |
|
≤1260nm |
≤1480nm |
|
|
● Specification (Replacement: GYXTC8S, GYTC8S):
|
Fiber Count |
Structure Size |
Cable Weight |
Allowable Tensile Force (N) |
Allowing Crush Force (N) |
||
|
d |
d1 |
t |
Kg / km |
Long-term / Short-term |
Long-term / Short-term |
|
|
2 |
1.20 |
1.20 |
1.00 |
31.88 |
1000/2000 |
2500/5000 |
|
4 |
1.35 |
1.35 |
1.00 |
36.62 |
1250/2500 |
2000/4000 |
|
6 |
1.50 |
1.50 |
1.00 |
44.42 |
1500/3000 |
2000/4000 |
|
8 |
1.75 |
1.75 |
1.00 |
53.37 |
1750/3500 |
2000/4000 |
|
12 |
2.00 |
2.00 |
1.00 |
57.43 |
1750/3500 |
1000/2000 |
