GYFTY Outdoor Cable

Description

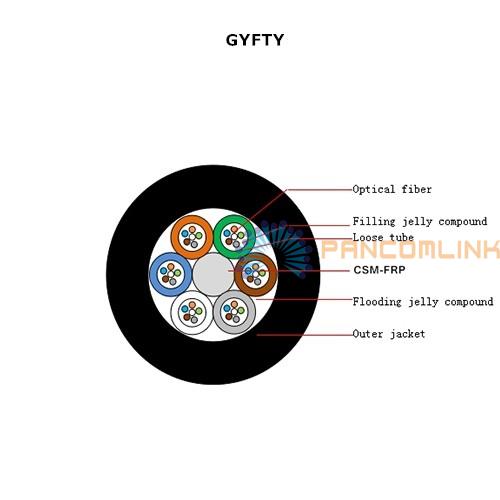

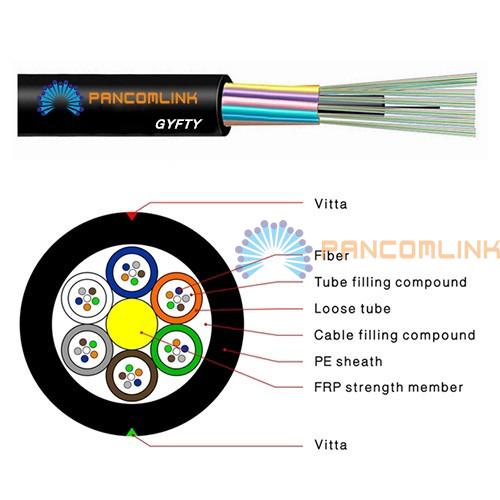

●GYFTY Stranded Loose Tube Non-Metallic Strength Member Non-Armored Outdoor Cable:

The fibers, 200/250μm, are positioned in loose tubes made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core, which can contain up to a maximum of up to 24 water-blocking gel-filled tubes. Each tube can contain up to a maximum of 12 fibers. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

● Features:

►Good mechanical and temperature performance;
►High strength loose tube that is hydrolysis resistant;
►Special tube filling compound ensure a critical protection of fiber;
►Good crush ability and soft;
►Adopt the measures below to assure the water-proof function:
·Single non-metallic central strength member
·Special tube filling compound ensure a critical protection of fiber
·Fully fiber filled

►Complies with Standard YD/T 901-2009 as well as IEC 60794-1.

● Application:

►Aerial/conduit;

►Connecting communication equipment;

►Suitable for long-distance communication and indoor communication.

● Optical Characteristics:

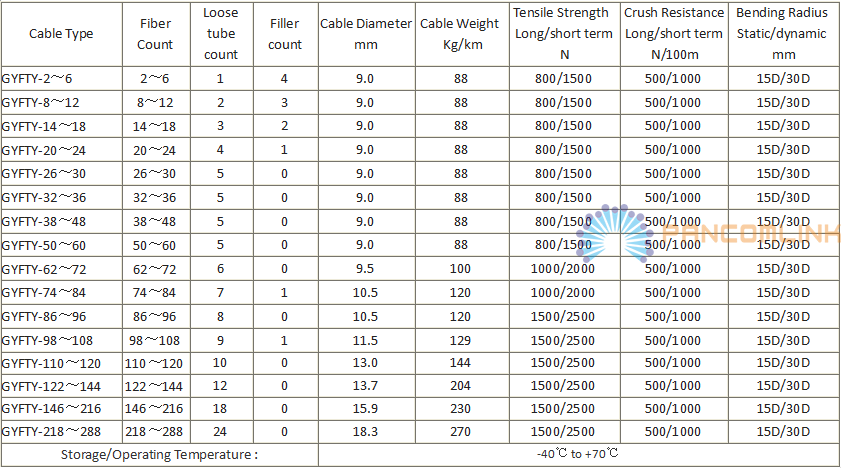

● Technical Parameters:
