Description

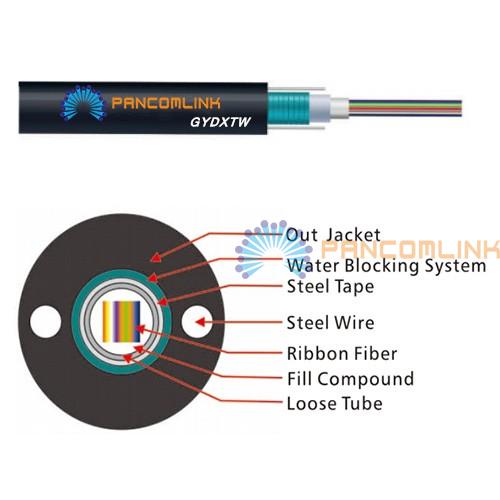

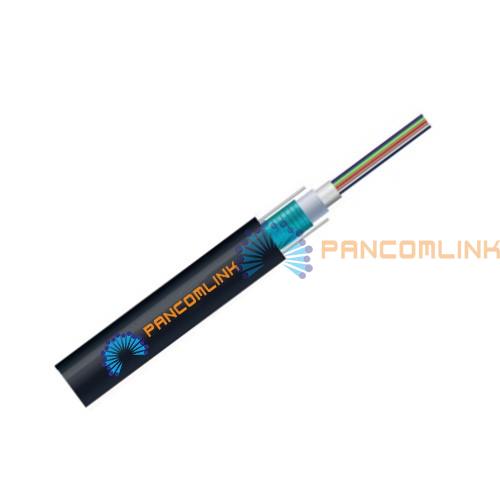

● GYDXTW Fiber Ribbon Cable:
GYDXTW Outdoor Cable an Aerial or Duct use fiber optic cable. Panconlink supplies GYDXTW Outdoor Cable from 2 cores to 144 cores with both single mode and multi mode types.
● Features:
►Low dispersion and attenuation;

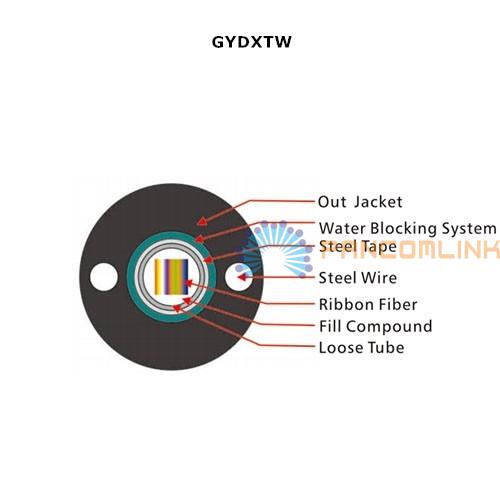

►Uni-tube gel-filled construction for superior fiber protection;
►Double wire as strain member provides excellent strain performance;
►Good mechanical and temperature resistant performance;
►Crush resistance and flexibility;
►Light weight and small diameter, easy to installation and operation;
►Ribbon connection.
● Application:
►Long distance and local area network (LAN) communication;
►Aerial & conduit/duct application.
● Specification:
|
Cable Type |
OD(mm) |
Nominal Weight (kg/km) |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
Bending Radius (mm) |
|||
|
Long Term |
Short Term |
Long Term |
Short Term |
Static |
Dynamic |
|||
|
GYDXTW-12-48Xn |
11.8±0.5 |
164.0 |
600 |
2000 |
300 |
1000 |
15D |
30D |
|
GYDXTW-60-72Xn |
13.0±0.5 |
181.0 |
600 |
2000 |
300 |
1000 |
15D |
30D |
|
GYDXTW-74-96Xn |
13.5±0.5 |
194.0 |
600 |
2000 |
300 |
1000 |
15D |
30D |
|
GYDXTW-98-120Xn |
14.5±0.5 |
212.0 |
600 |
2000 |
300 |
1000 |
15D |
30D |
|
GYDXTW-122-144Xn |
15.0±1.0 |
228.0 |
600 |
2000 |
300 |
1000 |
15D |
30D |
|
Operating and Storage Temperature: |
-40℃～+70℃ |
|||||||
Note: Xn is fiber optic model and D is the diameter of optical cable
