Description
● GJSFJV Simplex Single Tube Armored Cable

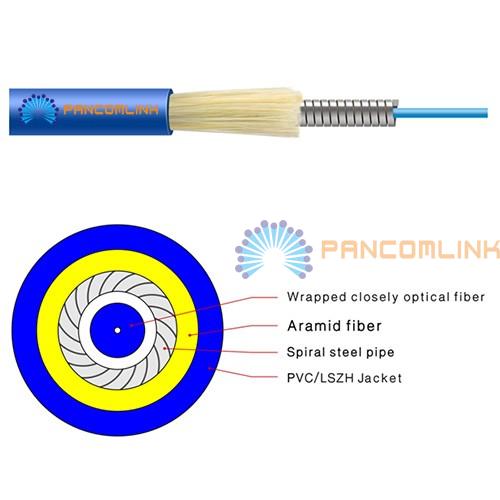

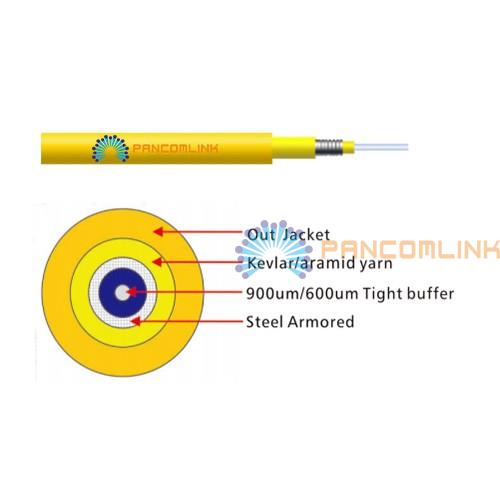

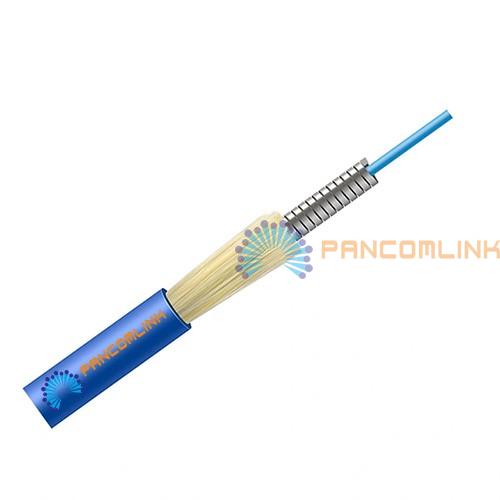

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath. GJSFJV cable complies with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meets the requirements of UL approval for OFNR, OFNP.
● Features:
►Stainless steel wires enhance the crush resistance of the cable and anti-rodent;
►High strength aramid yarn, high performance outer sheath;
►Small bending radius, light weight, flexibility, and friendly installation;
►Good mechanical and environmental performance;
►Flame retardant outer sheath provide good safety.
● Application:
►FTTH and user termination;
►Building cabling, LAN etc;
►Outdoor/indoor cabling, trunking hybrid optical connection etc;
►Backbone network to the equipment in the building;
►Small installation space cabling.
● Specification:
|
Item |
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300nm |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
|
≤1260nm |
≤1480nm |
|
|
|
Cable Type |
Fiber Count |
Tight Diameter |
Cable Diameter |
Cable Weight |
Tensile Strength
Long/Short Term |
Crush Resistance
Long/Short Term |
Bending Radius Static/Dynamic mm |
|
GJSFJV |
1 |
0.6 |
2.0 |
11 |
150/300 |
300/1000 |
10D/20D |
|
GJSFJV |
1 |
0.6 |
2.2 |
12 |
150/300 |
300/1000 |
10D/20D |
|
GJSFJV |
1 |
0.6 |
3.0 |
16 |
200/500 |
300/1000 |
10D/20D |
|
GJSFJV |
1 |
0.9 |
3.2 |
18 |
350/800 |
500/1000 |
10D/20D |
