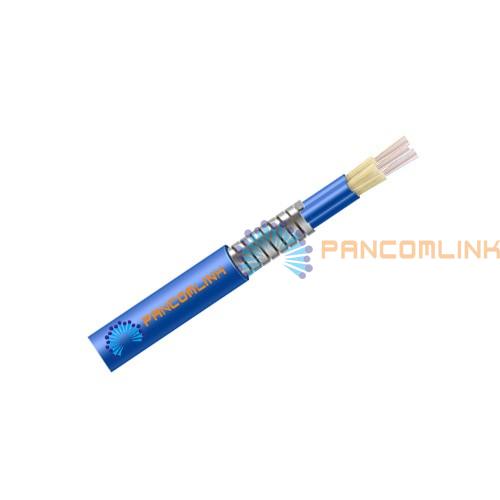

GJAFKV Multi-Core Bundle Type Armored Cable

Product Item：PCLINK-Indoor-GJAFKV-MC-Armored-Cable

Description

● GJAFKV Multi-Core Bundle Type Armored Cable

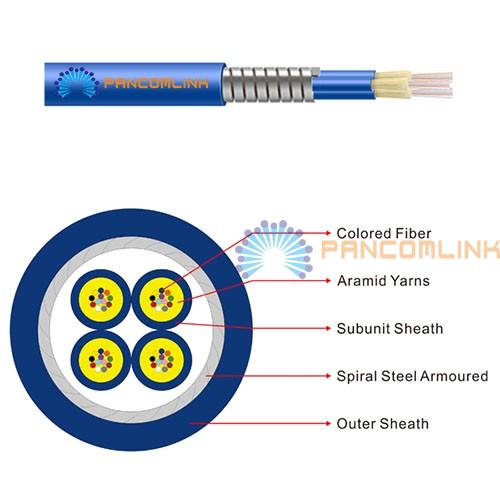

The structure of GJAFKV fiber cable is the multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A layer of PVC or LSZH inner jacket is extruded on the stranded surface as a subunit, and the multi-core bundle subunit is twisted into a circle In its outer layer winding a layer of steel wire armor, steel wire armor applied a small amount of aramid, then extruded PVC or LSZH outer sheath. GJAFKV cable complies with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meets the requirements of UL approval for OFNR, OFNP.

● Features:

►Miniature cable, high-strength aramid reinforced, high-performance jacket material protection;

►Small bending radius, light weight, soft, flexible, easy to follow;

►Flat wire armored to improve the optical cable compression and anti-rat ability;

►Good mechanical and environmental performance;

►Flame retardant or non-flame retardant outer jacket to provide good safety protection.

● Application:

►FTTH and user termination;

►Building cabling, LAN etc;

►Outdoor/indoor cabling, trunking hybrid optical connection etc;

►Backbone network to the equipment in the building;

►Small installation space cabling.

● Specification:

Item		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500MHZ·km	≥500MHZ·km
Bandwidth (Class A)	@1300nm			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm
