Description
● GCYFY Stranded Air Blowing Cable:

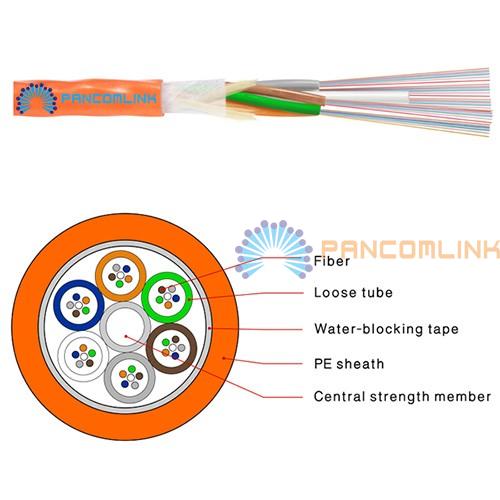

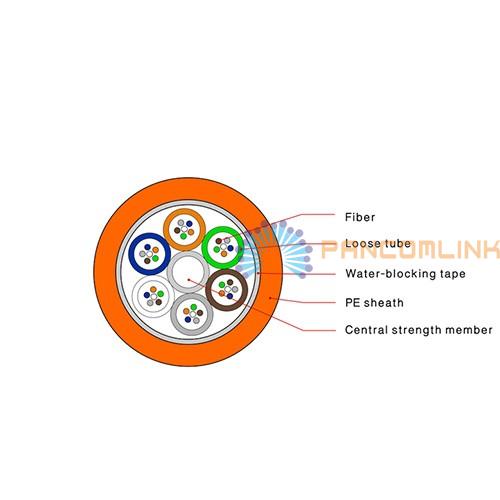

Large core number stranded air blowing cable, GCYFY cable structure, 250um optical fibers are jacketed high modulus material made of loose tube, the loose casing pipe is filled with waterproof compound, loose tube around the center of the strengthen core twist synthetic compact round cable core, the cable core gap mid to moisture-proof waterproof yarn, then extruding PE sheathed cable.
● Features:
►Perfect cable structure with high fiber density;
►Accurate fiber length balance to ensure stable performance;
►No gel in cable core for water blocking;
►Sheath structure innovation to enhance blowing performance;
►Greater blowing distance;
►Fiber: G.G652D, G.657A1, G.657A2
● Application:
►Using microtubule resources, especially for the backbone network, access network and fiber to the home;
►Cabling costs are low and suitable for upgrading the old city and building network.
● Technical Parameters:
|
P/N |
Fiber count |
Nominal diameter |
Nominal weight |
Max tensile strength |
Temperature |
|
MICROL-12G652D-PE |
12 |
5.2±0.1 |
25 |
500 |
-40 to +70 |
|
MICROL-24G652D-PE |
24 |
5.2±0.1 |
25 |
500 |
|
|
MICROL-36G652D-PE |
36 |
5.2±0.1 |
25 |
500 |
|
|
MICROL-48G652D-PE |
48 |
5.2±0.1 |
25 |
500 |
|
|
MICROL-60G652D-PE |
60 |
5.2±0.1 |
25 |
500 |
|
|
MICROL-72G652D-PE |
72 |
5.2±0.1 |
25 |
500 |
|
|
MICROL-96G652D-PE |
96 |
6.1±0.1 |
35 |
1000 |
|
|
MICROL-144G652D-PE |
144 |
7.9±0.1 |
57 |
1200 |
|
|
MICROL-192G652D-PE |
192 |
7.9±0.1 |
55 |
500 |
-20 to +70 |
|
MICROL-216G652D-PE |
216 |
7.9±0.1 |
55 |
500 |
|
|
MICROL-288G652D-PE |
288 |
9.4±0.1 |
78 |
1000 |
● Blowing Performance:
|
Fiber count |
Blowing machine |
Suitable microduct |
Blowing distance |
Blowing distance |
Blowing distance |
|
12 to 72 |
PLUMETTAZ PR-140 |
10/8 or 12/10 |
1800 |
2300 |
/ |
|
96 |
10/8 or 12/10 |
1800 |
2300 |
/ |
|
|
144 |
12/10 |
/ |
1200 |
/ |
|
|
192 to 216 |
12/10 |
/ |
1500 |
/ |
|
|
288 |
14/12 |
/ |
/ |
1500 |
