Description
● Description:

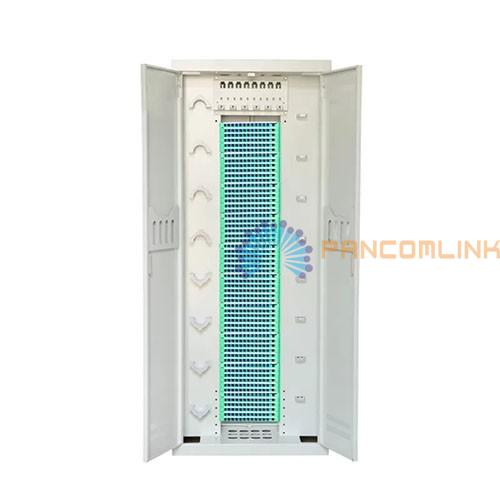

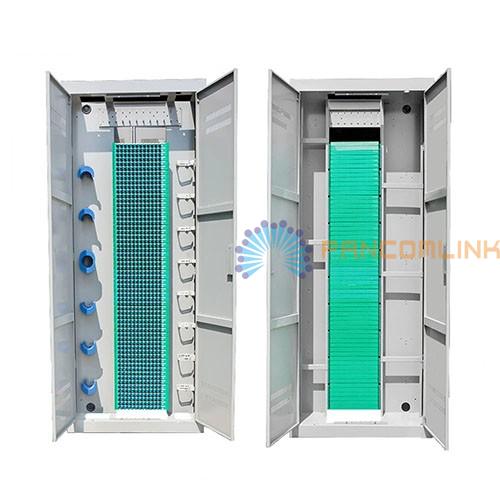

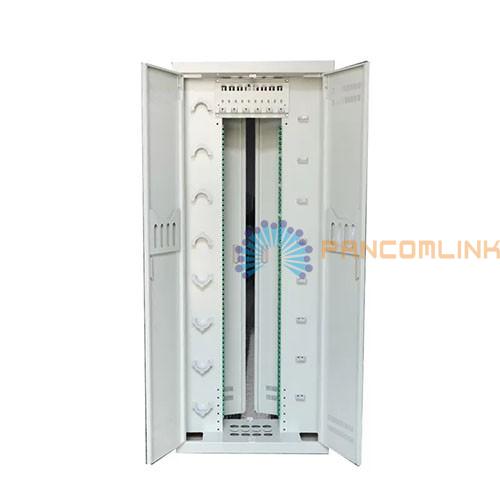

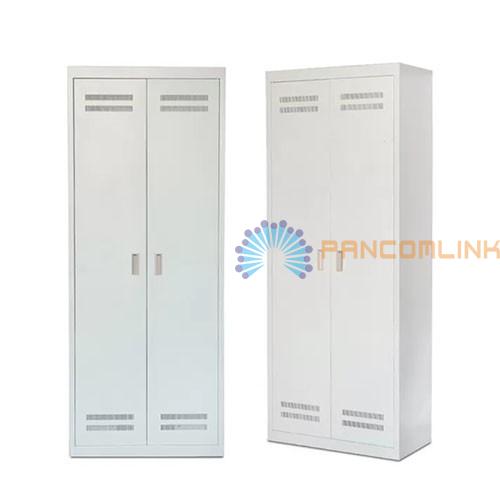

OCC (Optic Cross Connect Cabinet) is applied for fiber access networks in the trunk cable and wiring of fiber optic cable connecting node equipment. It is mainly used for outdoor cable connections, wiring and scheduling, activities and, through optical fiber connectors and jumper cable and fiber optic cable will be the core of the flexible connectivity.
OCC holds excellent performance, secure, reliable, flexible scheduling core, applied to optical fiber LAN, regional fiber optic network and access network, and so on. Cabinet was made by high-intensity SMC unsaturated polyester anti-corrosion special synthetic material, high-performance insulation can withstand drastic changes in climate and poor working conditions.
● Features:
• Material: Cold rolled steel with electrostatic spraying
• Capacity can be flexibly customized as required
• Installation is quick and convenient
• Applicable to strap-shaped and non-strap shaped fibers
• Built-in direct splice unit is capable for providing direct connection function
• Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
• With secure and reliable fastening and grounding protection devices for the optic fiber
● Application:
• FTTX Systems
• PON Networks
• CATV Links
• Optical Signal Distribution
● Specification:
|
Product name: |
Fiber Optic Cross Connection Cabinet (Floor Standing) |
|
Application: |
FTTX |
|
Color: |
Gray or Black |
|
Dimension |
2200*840*300mm for Rack Mounted Type |
|
2000*800*300mm for Plug-in Type |
|
|
Capacity |
576 Core (48 PCS of 12 Core Cable Tray), 1152 Core (48 PCS of 12 Core LC Cable Tray) |
|
720 Core (60 PCS of 12 Core Cable Tray), 1440 Core (60 PCS of 12 Core LC Cable Tray) |
|
|
Adaptor type: |
SC/FC/ST/LC |
|
Packing: |
1 pcs/carton |
|
Material: |
SMC |
