Description

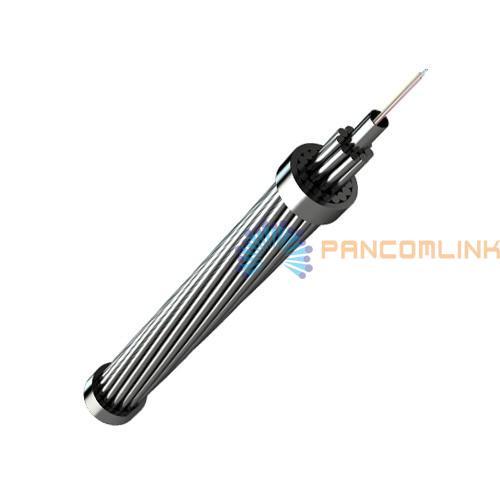

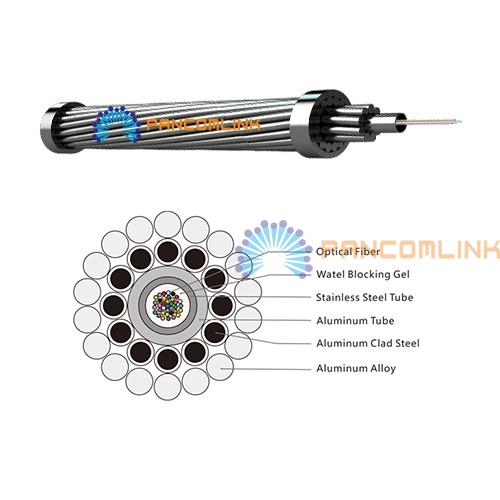

● Central AL-covered Stainless Steel Tube OPGW Cable:
OPGW Mainly used for power communication with accessories, relay protection,automatic transmission,installation together with high-voltage lines. The central AL-covered steel tube is surrounded by single or double layers of aluminum clad steel wires (ACS) or mix ACS wires and aluminum alloy wires. AL-covered Stainless Steel Tube design increases the cross section of AL, to reach a better fault current and lightning resistance performance. Apply to the transmission line which requires small diameter and large fault current.
● Fiber Type:G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options
● Features:
►High quality IEC607948 IEEE1138 standards for designing, testing and producing with grade A materials available to ensure long-term reliability;
►Engineering support supervising and providing its own line of accessories hardware;
►Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental conditions such as lightening;
►To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over 110kv;
►Apply to the transformation of old lines .
● Applications:
►Commonly used in newly built overhead power lines;
►Can meet the requirements of big number of fibers and ultra high voltage (UHV) transmission lines;
►Can provide protection against lightning by transmitting large fault short-circuit current.
● Standard:
|
ITU-TG.652 |
Characteristics of a single mode optical fiber. |
|
ITU-TG.655 |
Characteristics of a non-zero dispersion -shifted single mode fibers optical. |
|
EIA/TIA598 B |
Col code of fiber optic cables. |
|
IEC 60794-4-10 |
Aerial optical cables along electrical power lines-family specification for OPGW. |
|
IEC 60794-1-2 |
Optical fiber cables -part test procedures. |
|
IEEE1138-2009 |
IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines. |
|
IEC 61232 |
Aluminum -Clad steel wire for electrical purposes. |
|
IEC60104 |
Aluminum magnesium silicon alloy wire for overhead line conductors. |
|
IEC 6108 |
Round wire concentric lay overhead electrical stranded conductors. |
● Technical Parameter:

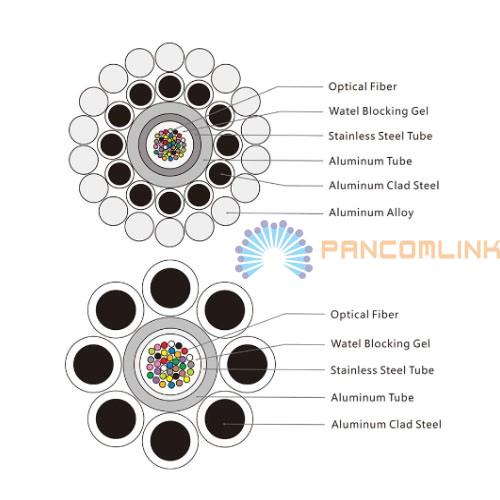

Typical design for Single Layer：
|
Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit (KA2s) |
|
OPGW-80 (82.3; 46.8) |
24 |
11.9 |
504 |
82.3 |
46.8 |
|
OPGW-70 (54.0; 8.4) |
24 |
11 |
432 |
70.1 |
33.9 |
|
OPGW-80 (84.6; 46.7) |
48 |
12.1 |
514 |
84.6 |
46.7 |
Typical design for Double Layer：
|
Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit (KA2s) |
|
OPGW-143 (87.9; 176.9) |
36 |
15.9 |
617 |
87.9 |
176.9 |
