Description

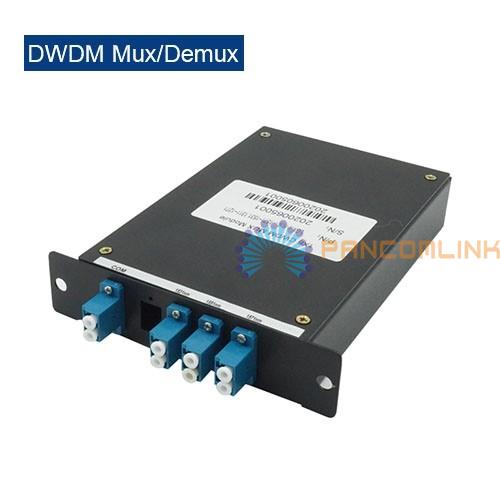

● CWDM MUX/DEMUX:
CWDM system utilizes advanced thin-film-filter technology designed for use with less expensive, non-temperature-controlled lasers of MUX/DEMUX, OADM and CWDM transceivers. The CWDM Mux/Demux covers all channels from 1270nm to 1610nm in 20nm increments. Aux/Demux can increase your network capacity combined with Multiservice Transport Device (Such as EDFA, DCM, OEO and so on), which can improve the manageability and interconnectivity of WDM Network.
● Features:
● Low insertion loss
● Based on thin-film filter technology

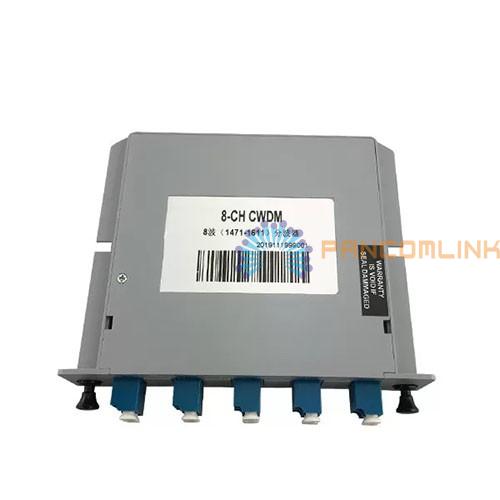

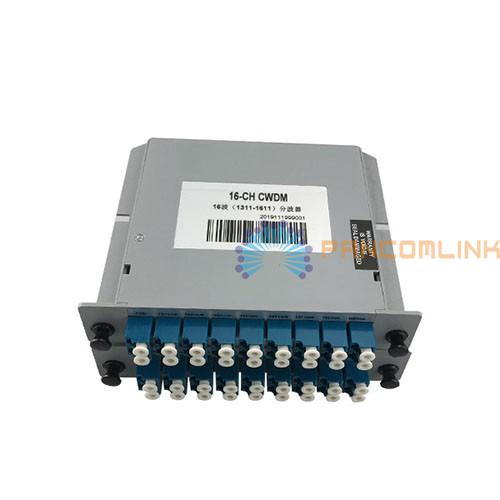

● Multiplexing of up to 16/8 channels on fiber pair/single fiber
● Standard CWDM band 1470nm - 1610nm, 20nm spacing
● Compliant to ITU-T G.694.2 standard and Telcordia GR1209, GR1221
● LC/SC/FC/ST, UPC/APC Interface are available
● Rate transparent for applications up to 10Gbps
● Monitor/Upgrade/1310nm Express port for external functions
● Completely passive, no electric power required

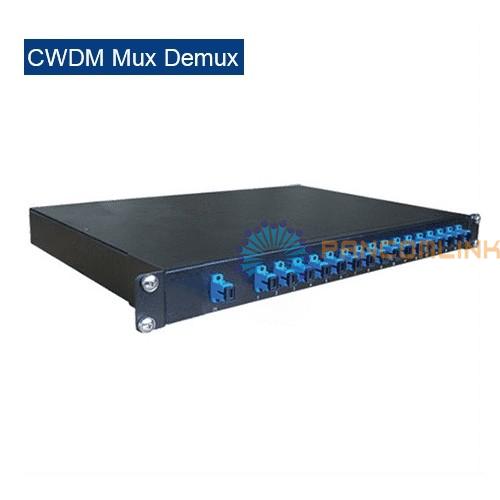

● Low-profile modular LGX box design optional, fits in LGX chassis
● Application:

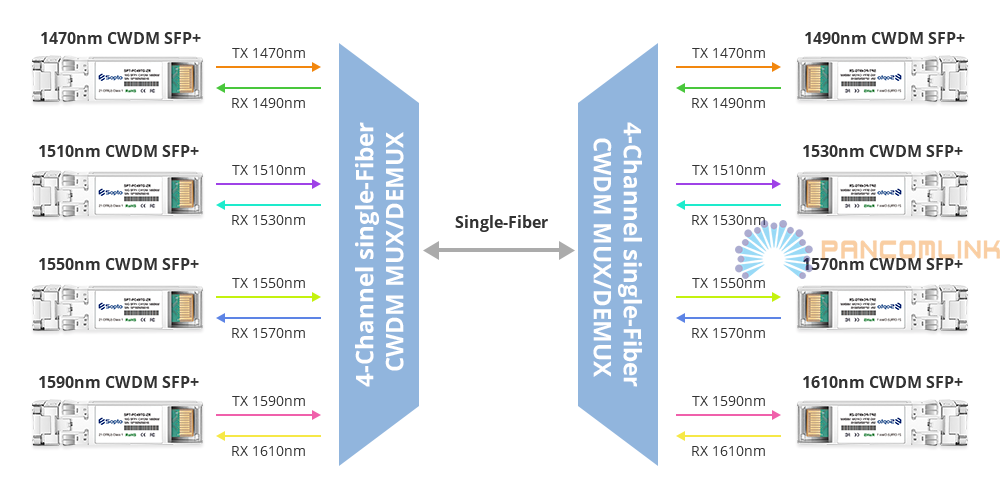

Applications in CWDM Network
● Specification:
|
Parameter |
Unit |
Specification |
|
Operating Wavelength Range |
nm |
1260~ 1620 |
|
Center Wavelength |
nm |
Customer specified 4, 8 or 16 wavelengths etc |
|
Channel Spacing |
nm |
20 |
|
Pass band |
nm |
CW±6.5 |
|
Insertion Loss (With Connector) |
dB |
≤2.5 |
|
Adjacent Channel Isolation |
dB |
≥30 |
|
Non-Adjacent Isolation |
dB |
≥45 |
|
Reflection Channel Isolation |
dB |
≥15 |
|
PDL |
dB |
≤0.2 |
|
Directivity |
dB |
≥50 |
|
Return Loss |
dB |
≥45 |
|
PMD |
ps |
≤0.1 |
|
Optical Power |
mW |
≤500 |
|
Operating Temperature |
℃ |
-10 to +70 |
|
Storage Temperature |
℃ |
-40 to +85 |
|
Fiber Type |
G.657.A1 or G.652D |
|
|
Interface Type |
LC/UPC or others |
|
|
Communication Type |
Single or Dual Fiber |
|
|
Optional functions |
1310 Express port: 1310+/-40nm; Upgrade port: Unused wavelength section; Moniter port: 1%; |
|
Note: The specific parameters are subject to the product specifications.
● Order Information:
|
Ordering Info. for CWDM MUX/DEMUX |
|
|
Part Number: WM-8MU-C47A1-LLU-2LR
123 456 7 89 10 11 12 13 |
|
|
1 - Number of wavelengths |
4: 4 wavelengths; 8: 8 wavelengths; 16: 16 wavelengths etc |
|
2 - Type |
M: CWDM Mux/Demux |
|
3 - Optional functions |
E: 1310nm Express port; F: 1550nm port; M: Moniter port; U: Upgrade Port |
|
4 - Standard |
C: Compatible with ITU-T G.694.2; |
|
5 - First wavelength |
27:1270nm; 29:1290nm; 31:1310nm; 33:1330nm; 35:1350nm; 37:1370nm; 39:1390nm; 41:1410nm;43:1430nm; 45:1450nm etc |
|
6 - Communication Type |
S: Single fiber; Null: Dual fiber; |
|
7 - Fiber Type |
D: G.652D; A1: G.657.A1; |
|
8 - COM ports |
L: LC; S: SC; F: FC; |
|
9 - Other ports |
L: LC; S: SC; F: FC; |
|
10 - Endface |
U: UPC polish; P: PC polish; A: APC polish |
|
11- Package |
L: LGX; R: 19 inch Rack Fixed; 2LR: 19 inch Rack with 2 LGX box; |
|
12 - Height |
Null: 1U; 2: 2U; 3: 3U etc |
|
13 - Additional parameters |
A31: Add 1310nm; S47: Skip 1470nm etc |
