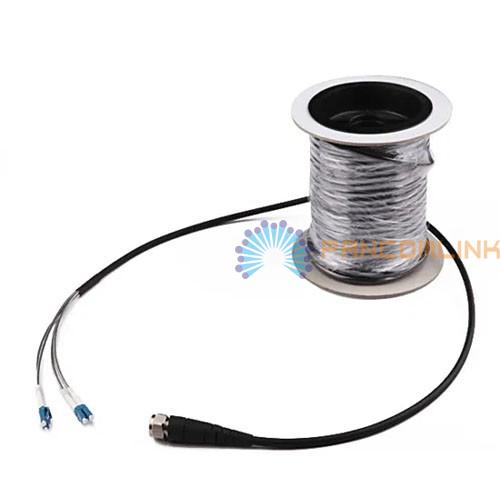

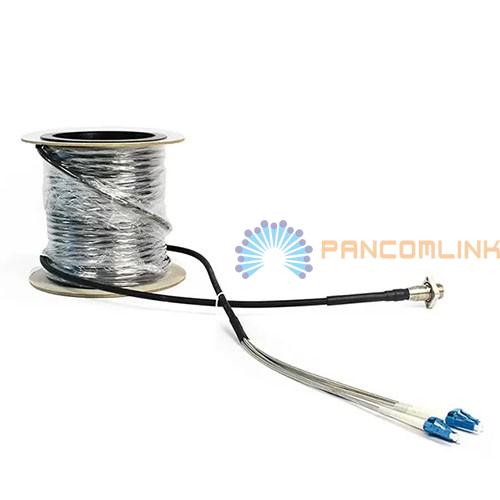

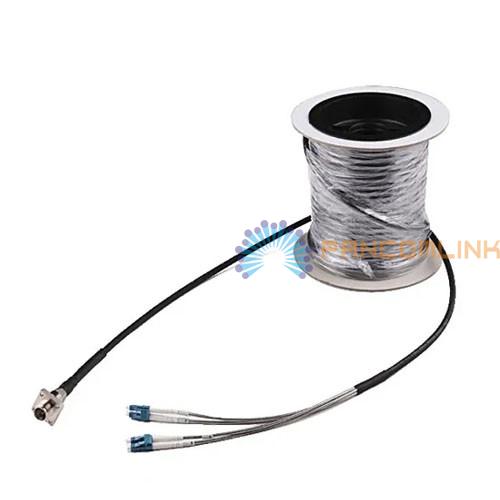

AARC Plug/Socket to LC 4 Cores SM Armored FTTA Patch Cable

Description

● AARC Outdoor Cable Assemblies:

AARC plug and receptacle assemblies are available in 2-fiber or 4-fiber configurations. Based on the N-Type RF threaded connector housing, this interconnect system provides superior optical performance in outdoor environments using LC-style 1.25mm ceramic ferrules.

The corrosion resistant metal housings provide a durable and environmentally protected solution for optical connectivity in areas exposed to elements such as rain, snow, dirt, and other types of contamination.

Factory-terminated AARC assemblies are available in plug, receptacle, and in-line connector styles, and can be supplied as pigtails or jumpers in lengths starting from 1 meter. Factory-terminated AARC receptacle assemblies are available with flange, jam-nut, or in-line configurations. AARC connectors are exceptionally suited for WiMax, LTE, 3G/4G/5G wireless, and base station applications.

● Features:
• IP67 water and dust protection

• Available with singlemode or multimode fiber

• Blind mate and scoop proof interface

• N Type connector housing

• Metal housing provides improved EMI protection

• Flange, Jam-Nut, or In-Line type receptacle assemblies

• Operating temperature: -40° to 75°C

• RoHS compliant

• 445 N (100lbs) cable retention

• Threaded style coupling

● Application:
• Multi-purpose Outdoor

• FTTA, FTTH Application

• 3G, 4G, 5G Base Station

• Deployment in BBU, RRU, RRH, LTE applications

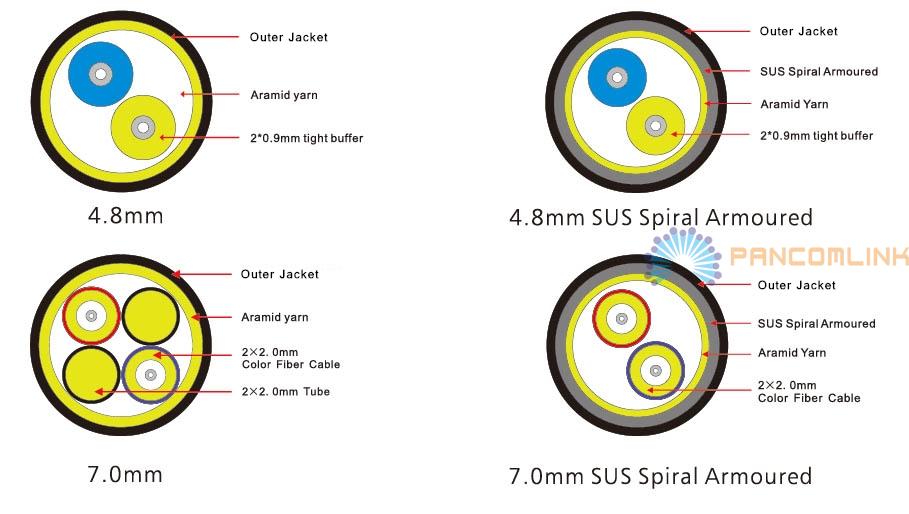

● Cable Parameter:
