Description
● 6G SFP+ Optic Transceiver:
6G SFP+ is a series of optical transceiver modules designed for use in LTE/OBSAI/CPRI application. For the OBSAI application, the rates are 6.144 Gb/s, 3.072 Gb/s, 1.536 Gb/s, 0.768Gb/s. For the CPRI application, the rates are 9.830 Gb/s, 7.373Gb/s, 6.144 Gb/s, 4.915 Gb/s, 2.458 Gb/s, 1.229 Gb/s, 0.614Gb/s.
● Features:
● RoHS-6 compliant
● Single +3.3V power supply
● Built-in digital diagnostic functions
● Supports data rate up to 6.25Gbps
● CPRI/OBSAI Compatible Optical Interface
● Transmission distance up to 300m on MMF OM3 and 80km over SMF
● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
● Application:
● Radio Base Station
● LTE/OBSAI/CPRI application
● OBSAI interface, such as 6.144/1.536/3.072/1.536Gbps and 768Mbps
● CPRI interface, such as 6.144/3.072/2.4576/1.228Gbps and 614Mbps
● Order Information:
|
Description |
Data Rate |
Wavelength |
Distance |
Fiber |
Tx Power (dBm) |
Rx Sens (dBm) |
Interface |
Temp. |
DDM |
|
6.25G SFP+ MM850nm 300m |
6.25G |
850nm |
300m |
MMF |
-5～-1 |
-11 |
Duplex LC |
0 to 70℃ |
Yes |
|

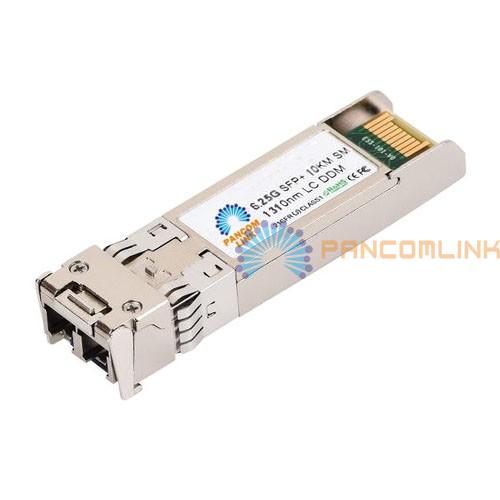

6.25G SFP+ SM1310nm 10Km |
6.25G |
1310nm |
10km |
SMF |
-5～0 |
-15 |
Duplex LC |
0 to 70℃ |
Yes |
|
6.25G SFP+ SM1310nm 20km |
6.25G |
1310nm |
20km |
SMF |
-4～0 |
-15 |
Duplex LC |
0 to 70℃ |
Yes |
|
6.25G SFP+ SM1550nm 40km |
6.25G |
1550nm |
40km |
SMF |
0～3 |
-17 |
Duplex LC |
0 to 70℃ |
Yes |
|
6.25G SFP+ SM1550nm 80km |
6.25G |
1550nm |
80km |
SMF |
0～5 |
-23 |
Duplex LC |
0 to 70℃ |
Yes |
