Description
● 1x9 Transceiver:
1x9 transceiver is designed for use in 0~2.67Gbps data links. It provides SC/FC/ST optical port that is compatible with the industry standard connector. Both the transmitter and the receiver are packaged together with a top plastic cover and bottom shield.
1×9 is a fiber optic transceiver in the industry standard 9 single in-line (pin) package (SIP) form factor. It is developed many years ago before GBICs and SFPs. It is a quite traditional transceiver type mainly used for industrial communications including media converters, optical mode converters, fiber-optic transmission system, and some other industrial Ethernet switches. The overall package concept for 1×9 transceivers consists of three basic elements: the two optical subassemblies, an electrical subassembly and the housing with integral duplex or simplex SC/ST/FC connector.
Unlike SFP transceiver, 1×9 transceiver provides SC, ST, FC and pigtail connector and operating voltage at +3.3V or +5.0V for choose. Since it cannot support pluggable but with a bigger dimension, the applications were restricted in low-speed data rate and industrial control communication, and it is widely replaced by more popular SFP optics.
Types of 1x9 Transceivers:
Classified by Applications: SONET/SDH 1×9, FE/GE 1×9, Fiber Channel 1×9, Video 1×9, CWDM 1×9, BIDI 1×9, Industrial 1×9
Classified by Data rate: 500kb, 2Mb, 10Mb, 52Mb, 84Mb, 155Mb, 350Mb, 622Mb, 1.25Gb, 2.125Gb, 2.5Gb
Classified by Distance: SX usually less than 2km, LX 10-20km, EX–1310nm or 1550nm for distances of 40km, ZX–1550nm for distances of 80km, EZX–1550nm for distances of 120km to 160km.
● Features:
• Industry Standard 1×9 package
• Up to 622Mb/s data links
• Single SC, ST or FC connector
• Single +3.3V or +5V Power Supply
• Standard PECL or LVPECL data output with signal detect an indication
• Class 1 laser safety standard IEC 60825 compliant
• Operating case temperature: 0 to +70°C
• ROHS compliant and Lead-Free
● Application:
• Gigabit Ethernet
• Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• SONET/SDH/PDH Equipment Interconnect
• Router/Server interface
• Other optical transmission systems
● Order Information:
|

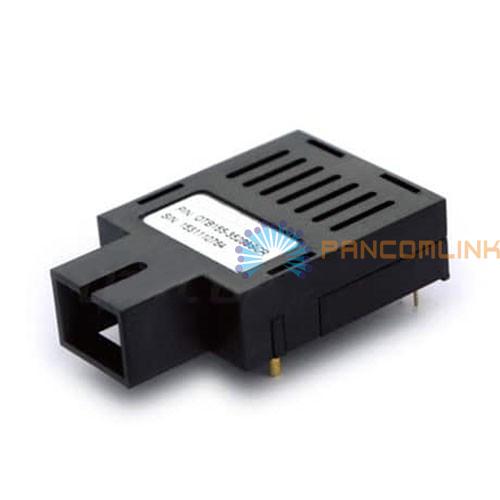

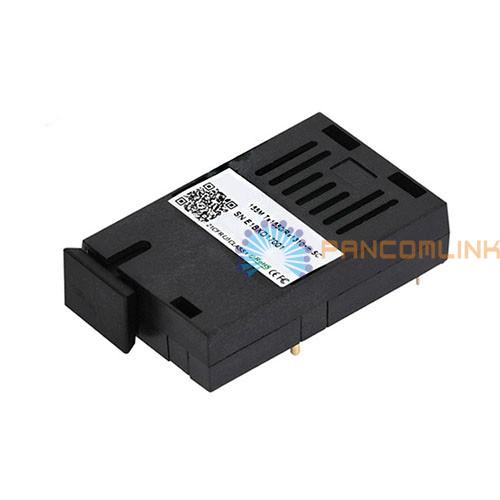

622Mbps BiDi 1×9 Optical Transceiver |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1310nm/Rx:1550nm, 20/40km, 3.3V, SC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1550nm/Rx:1310nm, 20/40km, 3.3V, SC |
|

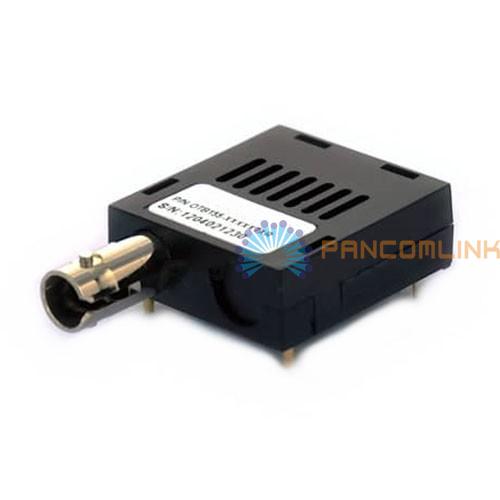

622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1310nm/Rx:1550nm, 20/40km, 3.3V, ST |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1550nm/Rx:1310nm, 20/40km, 3.3V, ST |
|

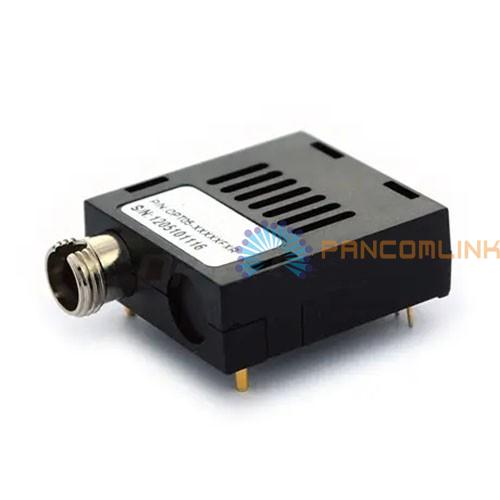

622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1310nm/Rx:1550nm, 20/40km, 3.3V, FC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1550nm/Rx:1310nm, 20/40km, 3.3V, FC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1310nm/Rx:1550nm, 20/40km, 5V, SC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1550nm/Rx:1310nm, 20/40km, 5V, SC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1310nm/Rx:1550nm, 20/40km, 5V, ST |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1550nm/Rx:1310nm, 20/40km, 5V, ST |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1310nm/Rx:1550nm, 20/40km, 5V, FC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1550nm/Rx:1310nm, 20/40km, 5V, FC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1490nm/Rx:1550nm, 80km, 3.3V, SC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1550nm/Rx:1490nm, 80km, 3.3V, SC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1490nm/Rx:1550nm, 80km, 3.3V, ST |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1550nm/Rx:1490nm, 80km, 3.3V, ST |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1490nm/Rx:1550nm, 80km, 3.3V, FC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1550nm/Rx:1490nm, 80km, 3.3V, FC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1490nm/Rx:1550nm, 80km, 5V, SC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1550nm/Rx:1490nm, 80km, 5V, SC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1490nm/Rx:1550nm, 80km, 5V, ST |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1550nm/Rx:1490nm, 80km, 5V, ST |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1490nm/Rx:1550nm, 80km, 5V, FC |
|
622Mbps BiDi 1×9 Optical Transceiver, Single mode, Tx:1550nm/Rx:1490nm, 80km, 5V, FC |
