Description

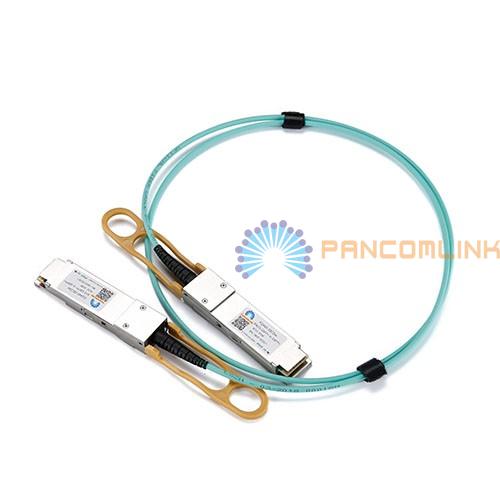

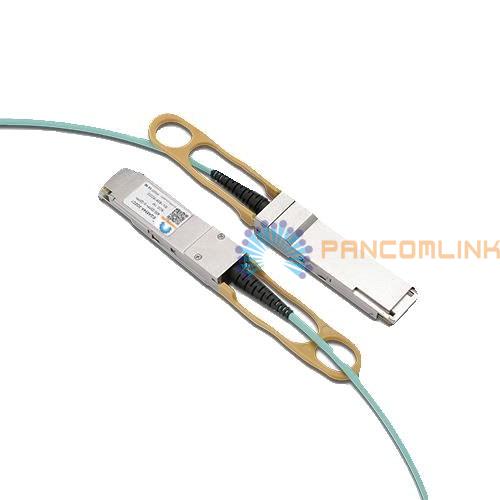

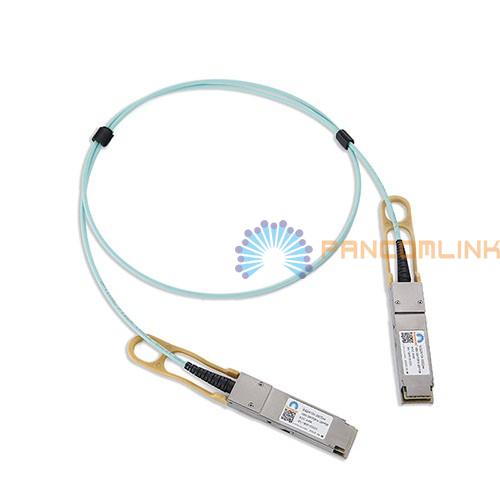

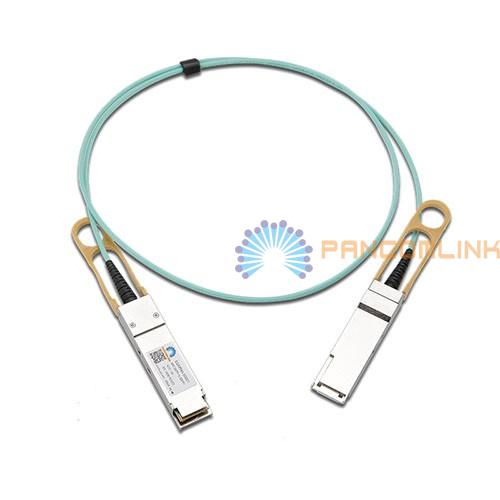

●56G QSFP+ AOC Cable:

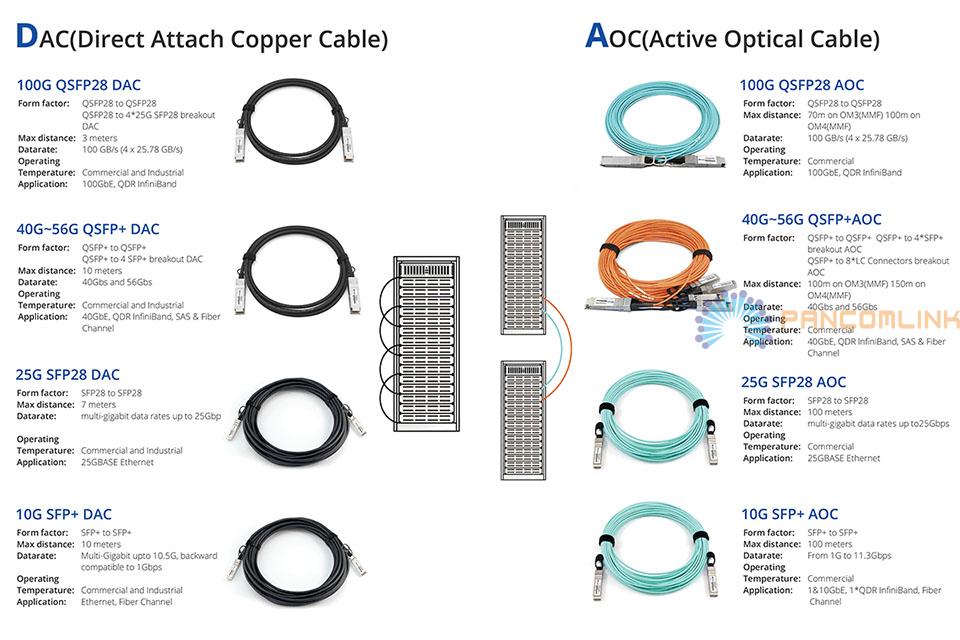

AOC Active Optical cables offer a flexible way to connect within racks and across adjacent racks. AOCs support farther inter-rack distances. AOCs are much thinner and lighter than DACs, which makes cabling easier. Active optical cables enable efficient system airflow, which is critical in high-density racks. PancomLink offers a wide range of products for 1m to 100m reaches, in CXP, QSFP28, QSFP, SFP28, SFP+ form factors and data rates of 10G~120G.
56Gb/s Low Power Active Optical Cable assemblies offer a cost-effective, extended reach option for high-speed data center interconnects. Using 850nm VCSEL technology, QSFP+ cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 14Gb/s per direction, providing an aggregated rate of 56Gb/s. The cable is available in a number of standard lengths up to 100 meters.
● Features:
• 4-channel bi-directional AOC with aggregated bandwidth of 56-Gbps (Electrical Interface Only)
• Compliant to SFF-8436 QSFP+ Specification Revision 4.1
• Supports 56-Gbps aggregated data-rate links up to 100-Meter
• Low power consumption of max 1.5 W (Compliant to Power Level 1)
• Hot pluggable electrical interface
• 0 to 70℃ case temperature operating range
• RoHS Compliance and Lead-Free
● Application:
• InfiniBand FDR,QDR,DDR,and SDR
• 40GBASE-SR4 Ethernet links
• 4G/8G/10G Fiber Channel
• SATA/SAS Storage
• HPC Interconnects
• Proprietary Interconnections
● Order Information:
|
Part Number |
Description |
Data Rate G(bps) |
Length |
Cable Type |
BER |
Temp. Range (°C ) |
|
FDR QSFP+ DAC |
56G |
1 M |
Passive Twinax |
< 10-15 |
0~70 |
|
|
FDR QSFP+ DAC |
56G |
2 M |
Passive Twinax |
< 10-15 |
0~70 |
|
|
FDR QSFP+ DAC |
56G |
3 M |
Passive Twinax |
< 10-15 |
0~70 |
|
|
FDR QSFP+ AOC |
56G |
3 M |
MMF OM3 |
< 10-12 |
0~70 |
|
|
FDR QSFP+ AOC |
56G |
5 M |
MMF OM3 |
< 10-12 |
0~70 |
|
|
FDR QSFP+ AOC |
56G |
7 M |
MMF OM3 |
< 10-12 |
0~70 |
|
|
FDR QSFP+ AOC |
56G |
10 M |
MMF OM3 |
< 10-12 |
0~70 |
|
|
FDR QSFP+ AOC |
56G |
15 M |
MMF OM3 |
< 10-12 |
0~70 |
|
|
FDR QSFP+ AOC |
56G |
20 M |
MMF OM3 |
< 10-12 |
0~70 |
|
|
FDR QSFP+ AOC |
56G |
30 M |
MMF OM3 |
< 10-12 |
0~70 |
