Description
● Athermal AWG(AAWG):

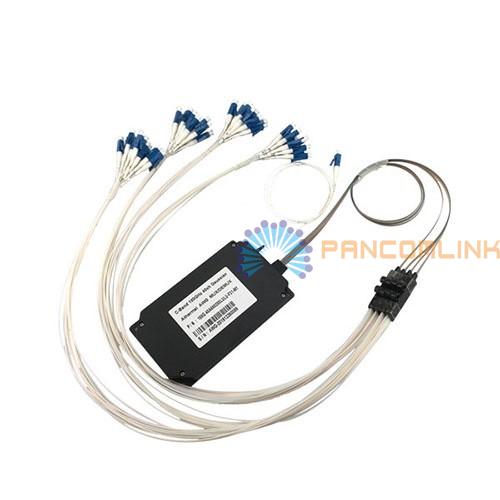

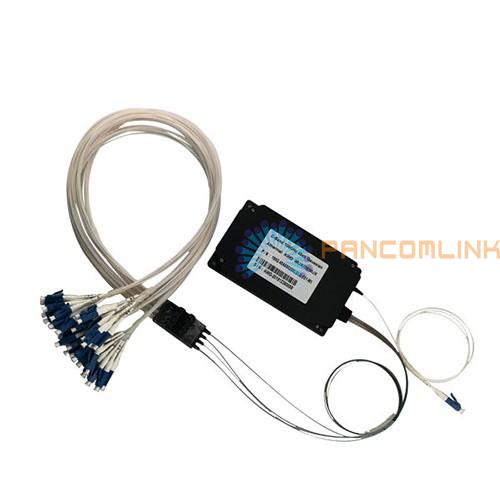

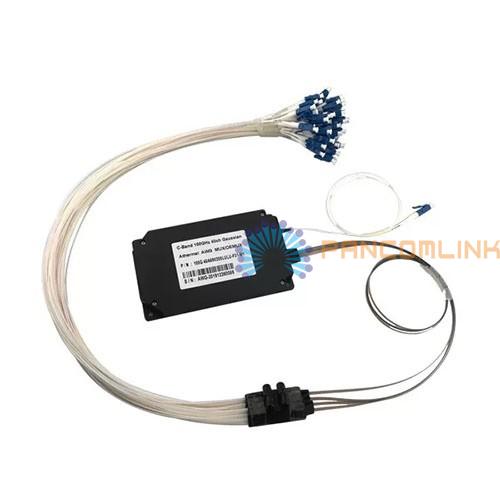

Athermal AWG(AAWG) have equivalent performance to standard Thermal AWG(TAWG) but require no electrical power for stabilization. They can be used as direct replacements for Thin Film Filters(Filter type DWDM module) for cases where no power is available, also suitable for outdoor applications over -30 to +70 degrees in access networks. Athermal AWG(AAWG) provides excellent optical performance, high reliability, ease of fiber handling and power saving solution in a compact package. Different input and output fibers, such as SM fibers, MM fibers, and PM fiber can be selected to meet different applications.
● Features:
● Low PDL
● Low chromatic dispersion
● Low insertion loss
● Telcordia GR-1221-Core qualified
● Application:
● Optical add/drop multiplexing
● Wavelength routing
● DWDM transmission
● Specification:
|
Parameter |
unit |
Flat top |
Gaussian |
Flat top |
Gaussian |
|
Number of channels |
|
16/32/40/48 |
80/88/96 |
||
|
Channel spacing |
Ghz |
50 |
50 |
||
|
Channel frequency |
Thz |
Blue band=1528.773~1547.316 |
C band=1526.827~1564.679 |
||
|
Red band=1545.720~1564.679 |
|
|
|||
|
Wavelength accuracy |
nm |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
|
1db bandwidth |
nm |
>0.18 |
>0.12 |
>0.18 |
>0.12 |
|
3db bandwidth |
nm |
>0.28 |
>0.20 |
>0.28 |
>0.20 |
|
Insertion loss (passband) |
dB |
<4.5 |
<3.7 |
<5.5 |
<4.5 |
|
Adjacent channel crosstalk |
dB |
>27 |
>27 |
||
|
Non-adjacent channel crosstalk |
dB |
>30 |
>30 |
||
|
Total crosstalk |
dB |
>24 |
>24 |
||
|
Insertion loss uniformity |
dB |
<1.2 |
<1.5 |
||
|
Polarization loss |
dB |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
|
Return loss |
dB |
>40 |
|||
|
Dispersion |
ps/nm |
±10 |
|||
|
Operating temperature |
ºC |
-20~70 |
|||
|
Size (length * width * height) |
mm |
120*70*12.3 |
130*90*11.3 |
||
