Description
● 3.0mm SM Armored Cable
The armored fiber optic cable, which “can be freely used like electrical wire”, is protected by flexible stainless steel tube. Compared with the regular fiber cable, it has advantage performance of high compression & impact resistance, anti-bug. With fixed standard 3mm fiber optic connector, it is widely used in various terrible environment.
● Application:
►FTTH and user termination;
►Building cabling, LAN etc;
►Outdoor/indoor cabling, trunking hybrid optical connection etc;
►Backbone network to the equipment in the building;
►Small installation space cabling.

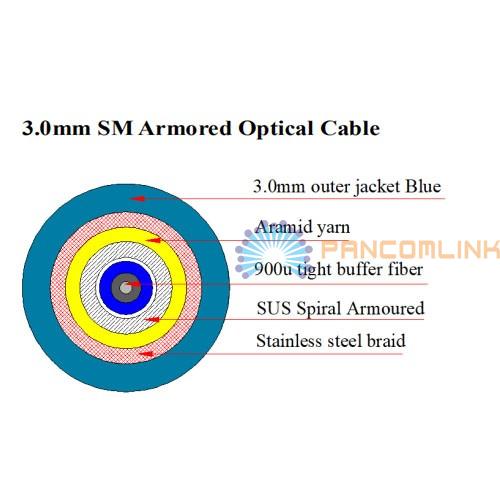

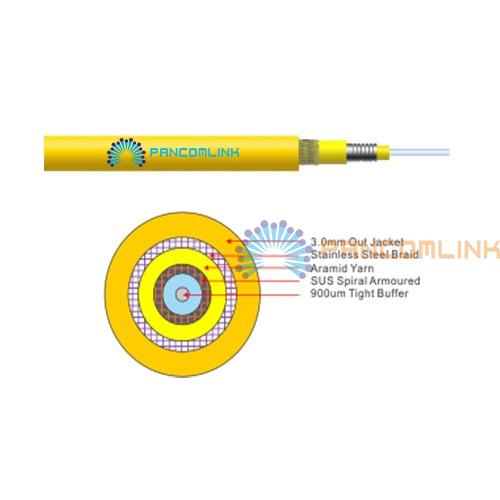

● Geometrical Characteristics:
|
Cable Structure |
Specifications |
|
Optical fiber |

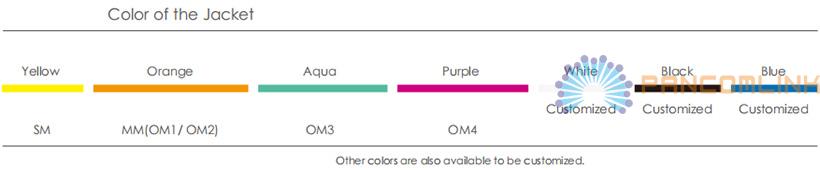

∅0.9±0.05mm (Color:SM/ White or yellow; MM/Blue or orange) |
|
SUS204 Armoured |
∅1.65±0.05mm |
|
Aramid yarn |
1100dtex, 1 branch outside the flexible metal tube |
|
SUS304 Stainless steel braid |
0.07mm*6 branches*16 spindles |
|
Outer Jacket |
∅2.9±0.10mm, Materia: PVC/LSZH/PU/OFNP/PE |
● Mechanical Characteristics:
|
Item |
Singlemode |
Multimode |
||||
|
Outer diameter |
3.0mm |
3.0mm |
||||
|
Standard color |
blue |
gray |
||||
|
Cable weight |
15kg/km approx |
|||||
|
Operating temperature |
PVC, OFNP -20℃～+70℃; LSZH, TPU, PE-40℃～+80℃ |
|||||
|
Storage temperature |
-40℃～+80℃ |
|||||
|
Tensile strength |
Short term |
150N |
||||
|
Long term |
300N |
|||||
|
Compression resistant strength |
≥3000N/100MM |
|||||
|
General attenuation |
1310nm |
≤0.4dB/km |
850nm |
≤3.0dB/km |
||
|
1550nm |
≤0.3dB/km |
1300nm |
≤1.0dB/km |
|||
|
Minimal Bending radius |
≥30D |
≥30D |
||||
|
Printing contents |
OPTICAL CABLE SM(G652) 3.0mm SIMPLEX XXXXM |
OPTICAL CABLE MM(62.5/125) 3.0mm SIMPLEX XXXXM |
||||
