Description
● Planar Lightwave Circuit (PLC) Splitter:
Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office to multiple premise locations. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in passive optical networks (EPON, BPON, GPON, etc.) connects the central office and the terminal device and implements the splitting of the optical signal.

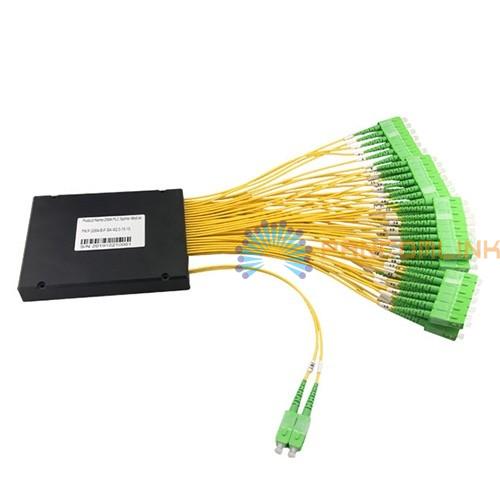

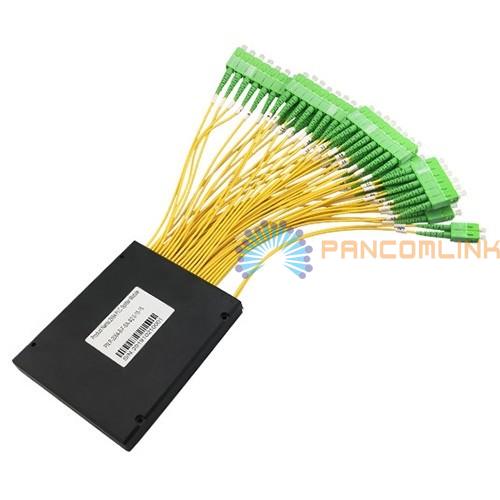

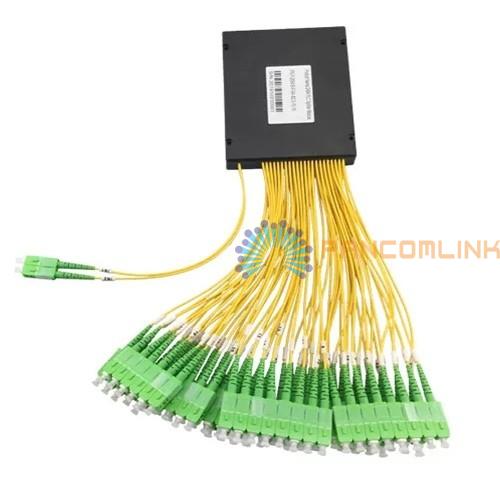

ABS Box PLC Splitter is an integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small size, wide operating wavelength range, high reliability and good uniformity of splitting. It is especially suitable for passive. In the optical network (EPON, BPON, GPON, etc.), the central office and the terminal device are connected and the optical signal is split. There are currently two types of 1xN and 2xN. 1xN and 2xN splitters evenly divide the optical signal into multiple outlets from a single or dual inlet, or work in reverse to direct multiple optical signals into a single or dual fiber.
● Features:
►Optional connector: SC/LC/FC/ST, Optional end face: APC/UPC;
►TU G.657A1 for fiber input/output;
►Compact design, suitable for installation in optical equipment;
►High reliability and stability, Telecordia GR-1221/1209 compliant;
►Operating bandwidth: 1260 -1650nm;
►Wide Operating Temperature: -40 - 85°C, support industry standard applications.
● Application:
►Optical Signal Distribution;
►Data Communications LAN and CATV System;
►FTTH Network/ Deployment;
►Measuring System and Laser System;
►DWDM and CWDM Systems.
● Specification:
|
1xN PLC Splitter Specification |
|||||||
|
Operating Wavelength (nm) |
1260~1650 |
||||||
|
Fiber Type |
G657A1 or as per customers' order |
||||||
|
Port Configuration |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
1x128 |
|
Insertion Loss (dB) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
23.8/24.2 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
2.5 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Dependent Loss (dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Return Loss (dB) |
55/50 |
||||||
|
Directivity (dB) |
≥ 55 |
||||||
|
Operating/Storage Temperature (℃) |
-40 to +85 |
||||||
|
|
|||||||
|
2xN PLC Splitter Specification |
|||||||
|
Operating Wavelength (nm) |
1260~1650 |
||||||
|
Fiber Type |
G657A1 or as per customers' order |
||||||
|
Port Configuration |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
2x64 |
2x128 |
|
Insertion Loss (dB) |
4.0 |
7.6 |
11 |
14.4 |
17.5 |
21.0 |
24.5 |
|
Loss Uniformity (dB) |
0.6 |
1.0 |
1.2 |
1.5 |
1.8 |
2.2 |
2.5 |
|
Polarization Dependent Loss (dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.35 |
0.4 |
0.4 |
|
Wavelength Dependent Loss (dB) |
0.3 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Dependent Loss (dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Return Loss (dB) |
55/50 |
||||||
|
Directivity (dB) |
≥ 55 |
||||||
|
Operating/Storage Temperature (℃) |

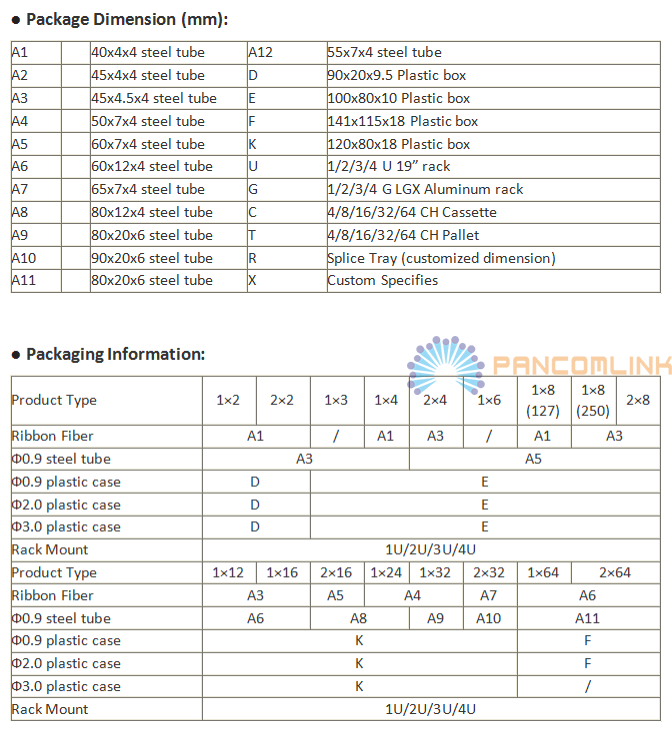

-40 to +85 |
||||||
