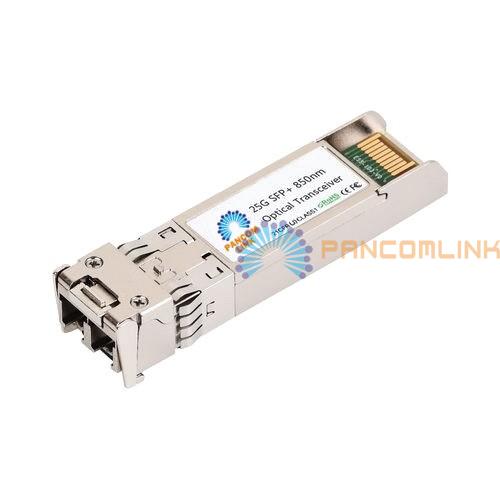

25G SFP28 SR MM850nm 100M LC Optic Transceiver

Description

● 25G SFP28 Optic Transceiver:

25GBASE SFP28 optical transceiver is designed for designed for use in 25-Gigabit Ethernet links. SFP28 optical transceivers are designed for use in 25GBASE and 28Gb/s data rate over multi mode or single mode fiber. They are compliant to IEEE 802.3by, SFF-8472 Rev 12.2 and SFF-8402, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

● Features:

• 10 km on 9/125μm SM

• 100m over M5F MMF (50/125μm OM4)

• 70m over M5E MMF (50/125μm OM3)

• 20m on MMF (50/125μm OM2)

• Transmission distance up to 100m on MMF OM4 and 10km over SMF

• Metal enclosure, for lower EMI

• 1.2W maximum power consumption

• Single 3.3V power supply

• Built-in digital diagnostic functions

• Up to 25.78Gb/s bi-directional data links

• Cost effective SFP28 solution, enables higher port densities and greater bandwidth

• 850nm Oxide VCSEL laser transmitter or 1310nm DFB laser transmitter

• Advanced firmware allows customer system encryption information to be stored in transceiver

• Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C

● Application:

• 25GBASE-SR/LR Ethernet

• High-speed storage area networks

• Computer cluster cross-connect

• Custom high-speed data pipes

• Inter Rack Connection
