Description
● Description:
Optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fibre splicing, fibre termination, fibre optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fibre optic connections from damage.

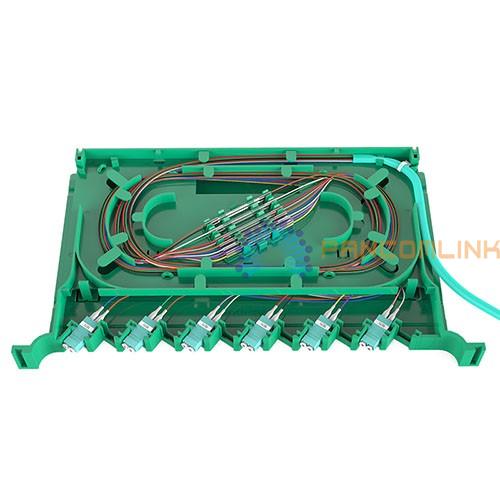

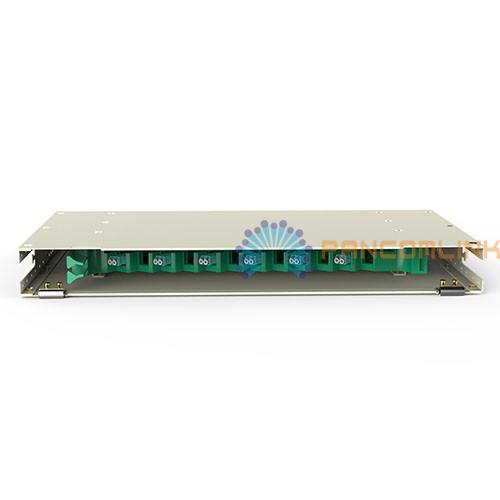

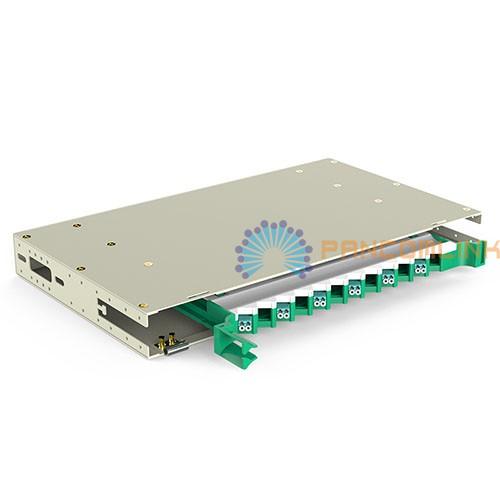

Rack-mount Fiber Optical Distribution Frame is modular design with drawable trays inside and cold-rolled steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails. It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
● Features:
• Modular design with splicing and distribution function
• Standard size, light weight and reasonable structure
• Compact design for space saving
• Suitable for ribbon and single fiber
• Various panel plate to fit different adapter interface
• Front access design panel design for easy operation
• Suitable for 19'' or 23'' standard optic distribution cabinets
• Splice tray units inside changeable
• Front mark on the plate is easy for identification and operation
• 12C, 24C, 36C, 48C, 72C, 96C and 144C optional, with or without fiber optic pigtails and adapters
● Application:
• Telecommunications subscriber loop
• Fiber to the home (FTTH)
• LAN/WAN
• CATV
● Specification:
|
Capacity |
12/24/48/72/96/144 cores |
|
Fiber Port |
FC, SC, ST and LC |
|
Number of ODF disks |
12 for 1, 24 for 2, 48 for 4, 72 for 6, 96 for 8, and 144 for 12 |
|
Working temperature |
-10 °C ~ +40 °C |
|
Storage temperature |
-25 ° C ~ +55 ° C |
|
Relative humidity |
≤ 85% (+30 ° C) |
|
Atmospheric pressure |
70Kpa~106Kpa |
|
Nominal operating wavelength |
850nm, 1310nm, 1550nm |
|
Insertion loss |
≤ 0.5dB |
|
Return loss |
PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB |
|
Electrical strength |
≥3KV(DC)/1min without breakdown |
|
Insulation resistance |
≥1000MΩ/500V (DC) |
|
Life |
≥1000 times |
|
Application range |
Small and medium-sized wiring system for fiber to the cell, fiber to the building,remote module office and wireless base station |
|
Model |
Core Count |
Height |
Dimension(mm) |
Weight(kg) |
|
ODF-R144 |
144 |
7U |
430x250x311.5 |
17.1 |
|
ODF-R96 |
96 |
5U |
430x250x222.5 |
11 |
|
ODF-R72 |
72 |
4U |
430x250x178 |
9 |
|
ODF-R48 |
48 |
3U |
430x250x133.5 |
7 |
|
ODF-R24 |
24 |
2U |
430x250x89 |
4.6 |
|

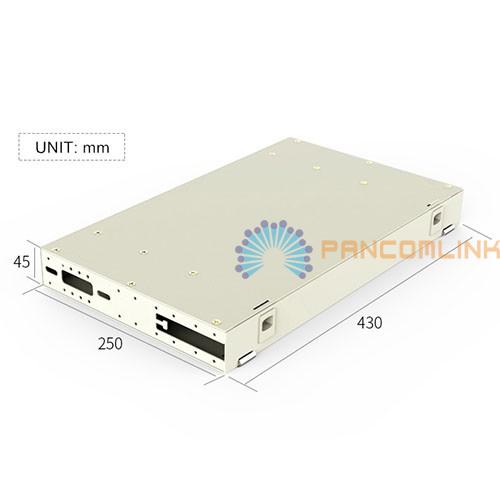

ODF-R12 |
12 |
1U |
430x250x44.5 |
3.9 |
