Description
● 10G XFP Optic Transceiver:
10G XFP Dual Fiber Optical Transceiver is a high performance, cost effective modules for serial optical data communications applications specified for signal rates of 9.95Gb/s to 11.3Gb/s. It is fully compliant to XFP MSA Rev 4.5. are designed for single mode fiber and multi mode fiber and operates at a nominal wavelength of 850/1310/1550nm, XFP SR, SFP LR, XFP ER, XFP ZR and XFP EZR. The transmitter section adopted 850nm a vertical cavity surface emitting (VCSEL) laser or uncooled directly modulated 1310nm distributed feedback laser (DFB) or EML cooled laser 1550nm. The receiver section uses PIN photodetector for low dark current and excellent responsivity or APD high sensitivity receiver.
● Features:
• Hot-pluggable XFP footprint
• XFI Loopback Mode
• Duplex LC connector
• Low Power dissipation
• Supports multi protocol 8.5Gb/s, 9.95Gb/s to 11.3Gb/s bit rates
• Built-in digital diagnostic functions, DDMI
• DFB or Temperature-stabilized EML Transmitter
• Transmission distance up to 300m on MMF OM3 and 120km over SMF
• IEC 60825-1 Class 1/CDRH Class 1 laser eye safety.
• Compatible with RoHS
• Superior Thermal and EMI integrity performance to support high port densities
• LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
• Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
● Application:
• OTN ITU-T G.709
• 10X/8X/4X/2X/1X Fibre Channel
• SONET OC-192 / SDH STM-64
• 10GBASE-LRM/SR/IR/LR/ER/ZR Ethernet
● Order Information:
|
10Gbps XFP Transceiver |
||||||||
|
Description |
Data Rate (Gbps) |
Wavelength |
Distance |
Fiber |
Tx Power (dBm) |
Rx Sens (dBm) |
Interface |
DDM |
|
10G XFP SR MM850 300m |
9.95~11.3 |
850nm |
300m/OM3 |
MMF |
-5～-1 |
-11 |
Duplex LC |
Yes |
|
10G XFP IR SM1310 2Km |
9.95~11.3 |
1310nm |
2km |
SMF |
-8.2～0.5 |
-14.5 |
Duplex LC |
Yes |
|

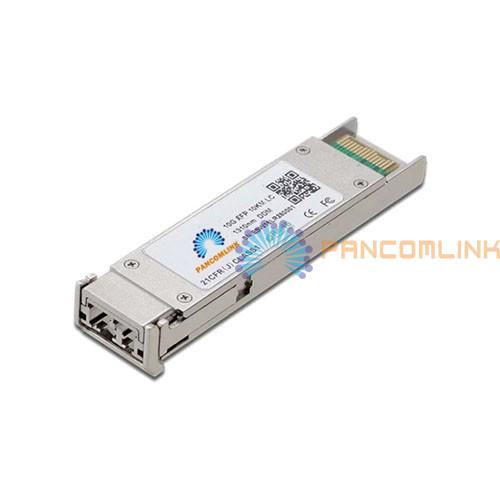

10G XFP LR SM1310 10Km |
9.95~11.3 |
1310nm |
10km |
SMF |
-8.2～0.5 |
-14.5 |
Duplex LC |
Yes |
|
10G XFP LRS SM1310 20Km |
9.95~11.3 |
1310nm |
20km |
SMF |
-8.2～0.5 |
-14.5 |
Duplex LC |
Yes |
|
10G XFP ER SM1550 40Km |
9.95~11.3 |
1550nm |
40km |
SMF |
0～3 |
-17 |
Duplex LC |
Yes |
|
10G XFP ERS SM1550 60Km |
9.95~11.3 |
1550nm |
60km |
SMF |
0～4 |
-22 |
Duplex LC |
Yes |
|
10G XFP ZR SM1550 80Km |
9.95~11.3 |
1550nm |
80km |
SMF |
0～5 |
-23 |
Duplex LC |
Yes |
|
10G XFP ZR+ SM1550 100Km |
9.95~11.3 |
1550nm |
100km |
SMF |
1～5 |
-24 |
Duplex LC |
Yes |
|
10G XFP ZR++ SM1550 120Km |
9.95~11.3 |
1550nm |
120km |
SMF |
1～5 |
-24 |
Duplex LC |
Yes |
|
Operating Temperature |
0℃~+70℃ |
|||||||
