Description
● 10G SFP+ Optic Transceiver:
10G SFP+/XFP is a series of optical transceiver modules operating at 850nm, 1310nm, and 1550nm wavelengths on Multi-Mode Fiber (MMF) or Single Mode Fiber (SMF). They are designed for use in 10-Gigabit Ethernet, 10G Fibre Channel, SONET/SDH OC-192/STM-64, and OTN OTU2e links, compliant with SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant.
BiDi SFP+ is a series of optical transceiver modules operating over Single Mode Fiber (SMF). They are designed for use in 10-Gigabit Ethernet, 10G Fibre Channel, SONET/SDH OC-192/STM-64, 6G/10G CPRI, and OTN OTU2e links, compliant with the SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant.
CWDM SFP+/XFP is a series of optical transceiver modules operating at 1270-1610nm CWDM wavelengths over Single Mode Fiber (SMF).
DWDM SFP+/XFP is a series of optical transceiver modules operating at DWDM C-band (100GHz channel spacing) wavelengths over Single Mode Fiber (SMF).
● Features:
● Hot-pluggable SFP+ form factor
● Supports date rates up to 11.3Gb/s
● Low power dissipation
● Duplex LC receptacles
● Single 3.3V power supply
● RoHS-6 compliant (lead free)
● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
● Application:
● OTN ITU-T G.709
● 10X/8X/4X/2X/1X Fibre Channel
● SONET OC-192 / SDH STM-64
● 10GBASE-LRM/SR/IR/LR/ER/ZR Ethernet
● Order Information:
|
10GGbps SFP+ Transceiver |
||||||||
|
Description |
Data Rate |
Wavelength |
Distance |
Fiber |
Tx Power (dBm) |
Rx Sens (dBm) |
Interface |
DDM |
|
10G SFP+ LRM MM1310 220m |
9.95~11.3G |
1310nm |
220m |
MMF |
-6～0.5 |
-12.6 |
Duplex LC |
Yes |
|

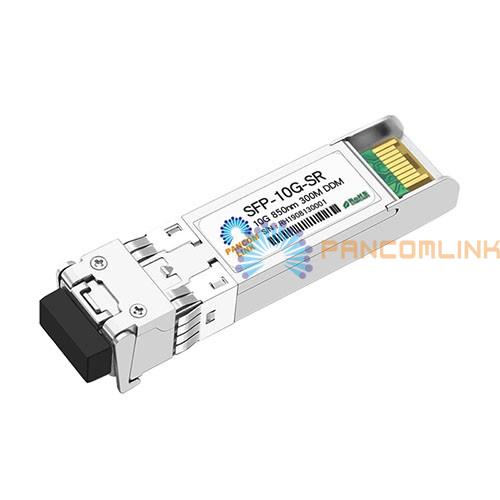

10G SFP+ SR MM850 300m |
9.95~11.3G |
850nm |
300m |
MMF |
-5～-1 |
-11 |
Duplex LC |
Yes |
|
10G SFP+ LR Lite SM1310 2Km |
9.95~11.3G |
1310nm |
2km |
SMF |
-8.2～0.5 |
-14.5 |
Duplex LC |
Yes |
|
10G SFP+ LR SM1310 10Km |
9.95~11.3G |
1310nm |
10km |
SMF |
-8.2～0.5 |
-14.5 |
Duplex LC |
Yes |
|
10G SFP+ LR SM1310 20Km |
9.95~11.3G |
1310nm |
20km |
SMF |
-8.2～0.5 |
-14.5 |
Duplex LC |
Yes |
|
10G SFP+ ER SM1550 40Km |
9.95~11.3G |
1550nm |
40km |
SMF |
0～3 |
-17 |
Duplex LC |
Yes |
|
10G SFP+ ERS SM1550 60Km |
9.95~11.3G |
1550nm |
60km |
SMF |
0～4 |
-22 |
Duplex LC |
Yes |
|
10G SFP+ ZR SM1550 80Km |
9.95~11.3G |
1550nm |
80km |
SMF |
0～5 |
-23 |
Duplex LC |
Yes |
|
10G SFP+ ZR+ SM1550 100Km |
9.95~11.3G |
1550nm |
100km |
SMF |
1～5 |
-24 |
Duplex LC |
Yes |
|
10G SFP+ ZR++ SM1550 120Km |
9.95~11.3G |
1550nm |
120km |
SMF |
1～5 |
-24 |
Duplex LC |
Yes |
|
Operating Temperature |
0℃~+70℃ |
|||||||
