Description
● 10G SFP+ Optic Transceiver:
10G SFP+/XFP is a series of optical transceiver modules operating at 850nm, 1310nm, and 1550nm wavelengths on Multi Mode Fiber (MMF) or Single Mode Fiber (SMF). They are designed for use in 10-Gigabit Ethernet, 10G Fibre Channel, SONET/SDH OC-192/STM-64, and OTN OTU2e links, compliant with SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant.

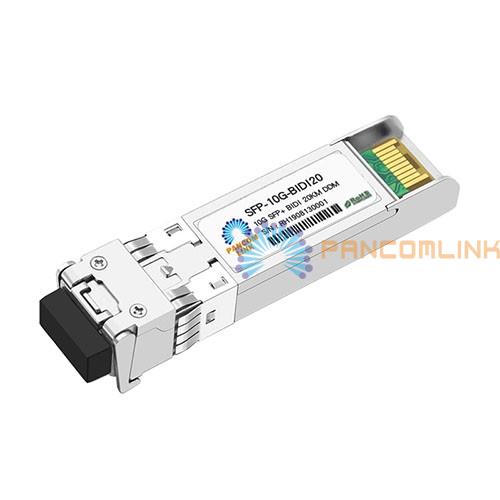

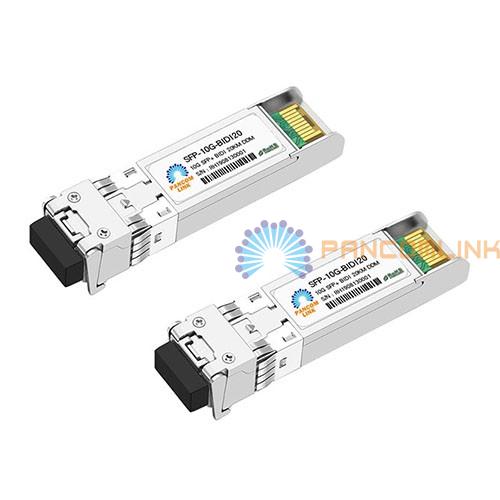

BiDi SFP+ is a series of optical transceiver modules operating over Single Mode Fiber (SMF). They are designed for use in 10-Gigabit Ethernet, 10G Fibre Channel, SONET/SDH OC-192/STM-64, 6G/10G CPRI, and OTN OTU2e links, compliant with the SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant.
CWDM SFP+/XFP is a series of optical transceiver modules operating at 1270-1610nm CWDM wavelengths over Single Mode Fiber (SMF).
DWDM SFP+/XFP is a series of optical transceiver modules operating at DWDM C-band (100GHz channel spacing) wavelengths over Single Mode Fiber (SMF).
● Features:
• Hot-pluggable SFP+ form factor
• Supports date rates up to 11.3Gb/s
• Low power dissipation
• Single LC receptacle
• Single 3.3V power supply
• Built-in digital diagnostic functions
• 1270nm&1330nm or 1490nm&1570nm
• Transmission distance up to 80km over SMF
• Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
● Application:
• SONET OC-192 / SDH STM-64
• OTN ITU-T G.709
• 10GBASE-SR/LR/ER/ZR Ethernet
• 10X/8X/4X/2X/1X Fibre Channel
● Order Information:
|
10Gbps BIDI SFP+ Transceiver |
||||||||
|
Description |
Date Rate |
Wavelength (nm) |
Distance |
Fiber |
Tx Power (dBm) |
Rx Sens (dBm) |
Interface |
DDM |
|
10G-BIDI-SFP+-Tx1270/Rx1330nm-10KM |
10G |
Tx1270/Rx1330 |
10km |
SMF |
-6～-1 |
-14 |
Simplex LC |
Yes |
|
10G-BIDI-SFP+-Tx1330/Rx1270nm-10KM |
10G |
Tx1330/Rx1270 |
10km |
SMF |
-6～-1 |
-14 |
Simplex LC |
Yes |
|
10G-BIDI-SFP+-Tx1270/Rx1330nm-20KM |
10G |
Tx1270/Rx1330 |
20km |
SMF |
-2～3 |
-14 |
Simplex LC |
Yes |
|
10G-BIDI-SFP+-Tx1330/Rx1270nm-20KM |
10G |
Tx1330/Rx1270 |
20km |
SMF |
-2～3 |
-14 |
Simplex LC |
Yes |
|
10G-BIDI-SFP+-Tx1270/Rx1330nm-40KM |
10G |
Tx1270/Rx1330 |
40km |
SMF |
-3～0 |
-16 |
Simplex LC |
Yes |
|
10G-BIDI-SFP+-Tx1330/Rx1270nm-20KM |
10G |
Tx1330/Rx1270 |
40km |
SMF |
-3～0 |
-16 |
Simplex LC |
Yes |
|
10G-BIDI-SFP+-Tx1270/Rx1330nm-60KM |
10G |
Tx1270/Rx1330 |
60km |
SMF |
1～5 |
-20 |
Simplex LC |
Yes |
|
10G-BIDI-SFP+-Tx1330/Rx1270nm-60KM |
10G |
Tx1330/Rx1270 |
60km |
SMF |
1～5 |
-20 |
Simplex LC |
Yes |
|
10G-BIDI-SFP+-Tx1490/Rx1570nm-80KM |
10G |
Tx1490/Rx1570 |
80km |
SMF |
1～6 |
-22 |
Simplex LC |
Yes |
|
10G-BIDI-SFP+-Tx1570/Rx1490nm-80KM |
10G |
Tx1570/Rx1490 |
80km |
SMF |
1～6 |
-22 |
Simplex LC |
Yes |
|
Operating Temperature |
0 to 70℃ |
|||||||
