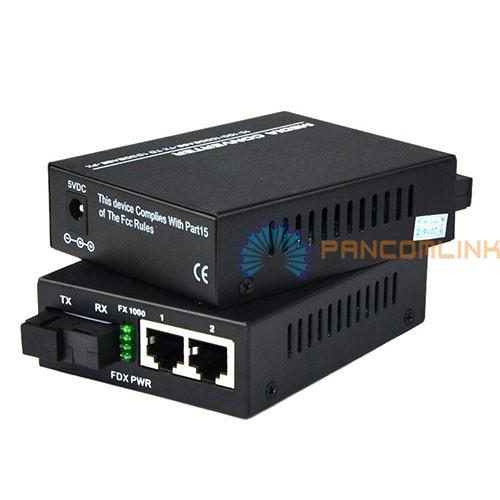

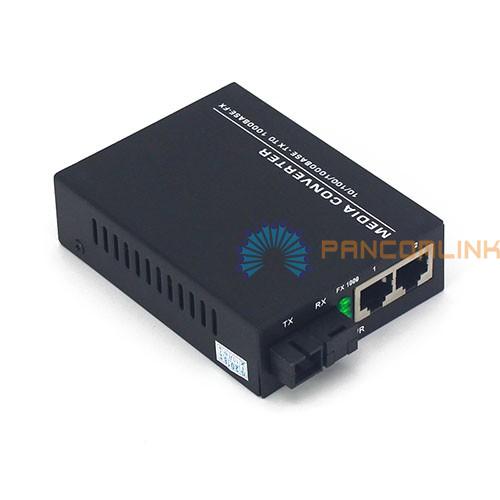

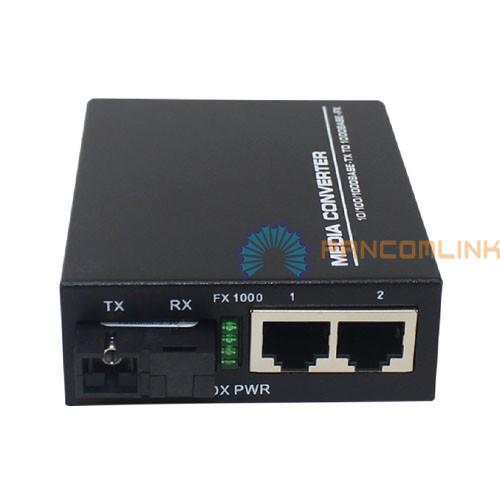

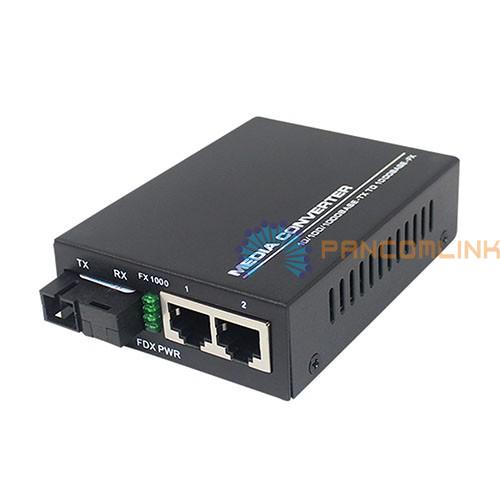

1000Mb Media Converter 1xFiber 2xRJ45

Description

● Media Converter:

Media converter also called as fiber converter which receives data signals, sends via one media, converts the signals and then transmits the signals into another kind of media. Fiber converters can convert the signals sent from copper cable to signals that run on the fiber cable. Fiber media converters are used in the fiber optic network to transform the signals sent from fiber glass to traditional UTP cables; they are typically used in Ethernet as physical layer networking equipment.

PancomLink offers different types of switches and fiber converters like 10/100M, 10/100/1000M and 10G fiber converters, SFP fiber converters, manageable/unmanageable fiber converters, OEO fiber converters, POE fiber converters and fiber converter chassis; transmitting distance from 2km(MM) to 150km(SM) with SC or LC or FC connectors. There are two types chassis for fiber media converters, typical type is a 19-inch rack-mounted chassis, with 14 or 16 slots on it, so that it can fit 14 or 16 pieces of chassis type fiber converters. The difference is 14 slots chassis is used with standalone fiber media converters, while 16 slots chassis is used with card type fiber optic media converters, and 16 slots chassis is bigger size.

10/100/1000M Media Converters are designed to transmit and receive data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps or 1000M Ethernet rate without any adjustments.

● Features:

● SC, FC, ST and SFP optical interface;

● 10/100/1000Mbps Ethernet;

● Automatic MDI/MDI-X crossover;

● SNMP management optional;

● 1000 BASE-SX/LX optical port;

● 10/100/1000 BASE-T/TX electrical port;

● No in-field optical adjustments required;

● Optical port supports 1000Mbps full duplex data;

● Provides DIP switch for LFP function (Disable / Enable) setting;

● Distances up to 2km for Multimode; Up to 120km for Singlemode;

● Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data;

● Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX;

● Voltage transient protection on all power and signal input. output lines provide unconditional protection from power surges and other voltage transient events.

● Application:

● LAN/WAN;

● Access Control Systems;

● 10/100/1000 Mbps Ethernet;

● High Speed Computer Links.

● Specification:
