Description
● Industrial Fiber Media Converter:
Industrial Fiber Media Converter, which can also be called Industrial Fiber Switch, operating temperature-40 ℃ to + 85 ℃, supports wide voltage dual power input, meets IP40 protection degree and EMC industrial grade requirements, DIN rail installation.
● Features:
● 1 ~ 8 x 10/100 or 10/100/1000Mbps Auto-sensing RJ45 ports;
● 1 ~ 4 x SC fiber ports or SFP ports;
● 4 KV Ethernet surge protection, adapt to a harsh outdoor environment;
● Support Auto MDI/MDIX;
● POE optional, Max power to15.4W under af standard, 30W under at standard to each PoE port;
● Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard;
● IEEE 802.3 100Base-T or IEEE 802.3u 1000Base-TX compliant;
● A store-and-forward switching mechanism;
● Management function optional;
● Transmission Distance:
Twisted pair: 100M (standard CAT5/CAT5e cable)
Fiber: Multimode 850nm/550m Multimode 1310nm/2Km; Single mode 1310-1550nm /20/40/60/80/100Km;
● Power supply: Input voltage: 9-36V; Input current: 1/2A
Access terminal: dual power supply redundant backup, support overload reverse connection protection.
● Application:
● LAN/WAN;
● Access Control Systems;
● Ethernet;
● Building and Environmental Control Systems.

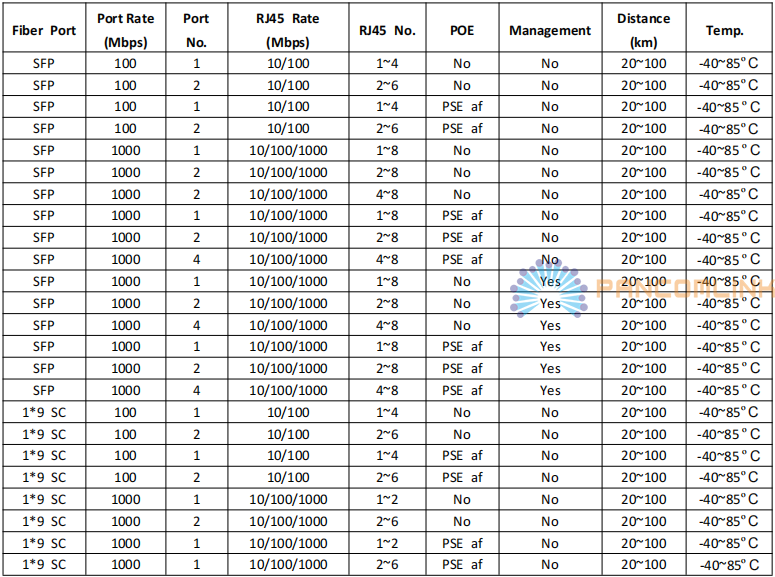

● Order Information:
