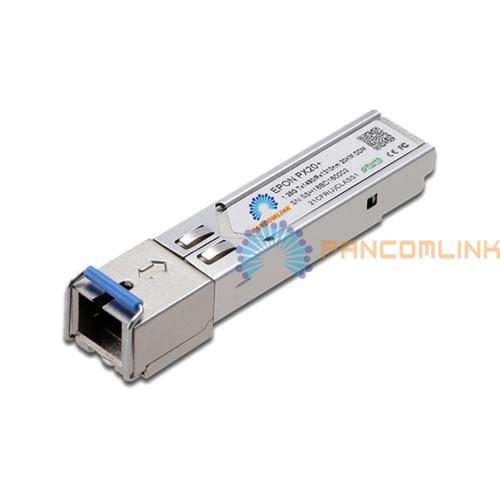

1.25G EPON OLT SFP PX20+ 20KM SC Optic Transceiver

Description

● PON SFP Optic Transceiver:

PON SFP is a series of optical transceiver modules operating in Passive Optical Networks (PON). Gigabit Passive Optical Networks (GPON) ITU G.984 standards have defined downstream data rates up to 2.5Gbps. Ethernet Passive Optical Networks (GEPON or EPON) IEEE 802.3ah standards have defined downstream data rates up to 1.25Gbps.

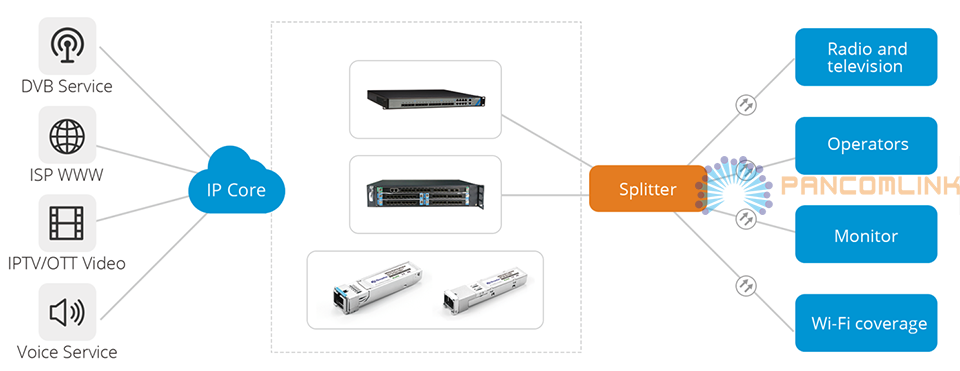

GPON SFP is a series of optical transceiver modules operating in Gigabit Passive Optical Networks (GPON). From the Central Office’s (CO) Optical Line Terminal (OLT, with GPON SFP transceiver/module) a single strand of fiber goes out to a passive optical splitter where its signal is multiplied to maximum 128 different lines in GPON.

Ethernet Passive Optical Networks (EPON). From the Central Office’s (CO) Optical Line Terminal (OLT, with EPON SFP transceiver/module) a single strand of fiber goes out to a passive optical splitter where its signal is multiplied to maximum 64 different lines in EPON.

● Features:

● Built-in digital diagnostic functions

● Single +3.3 Power Supply, Hot-pluggable

● Up to 20km distance at 9/125µm G.652 SMF

● Operating Case Temperature: Standard: 0~70°C

● SFP Package with SC Interface or Pigtailed, both ONU and OLT series

● Compliant With 1000BASE- PX20/PX20+/ PX20++

● Ethernet Passive Optical Networks (GEPON or EPON) IEEE 802.3ah standards have defined downstream data rates up to 1.25Gbps.

● Application:

● Gigabit Ethernet Passive Optical Networks (GEPON) 20Km 1:32 application or 10Km 1:64 application

● Order Information:
